Rasper Garri Cassava Grinder Milling Equipment Large Capacity

Rasper Garri Cassava Grinder Milling Equipment Large Capacity

Product Details:

Place of Origin: Henan
Brand Name: JingHua
Model Number: rasper

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 3000*1490*1500 mm
Delivery Time: 10 work days
Payment Terms: L/C, D/P, D/A, Western Union, T/T, MoneyGram
Supply Ability: 10
Get Best Price Contact Now

Detail Information

Product Name: Cassava Starch Processing Equipment Application: Food Flour Grinding Mill Machine
Function: Multifunction Final Products: Super Fine Flour
Material: Stainless Steel Advantage: Large Capacity
Processing: Cleaning-degerminating-milling-packing Processing Type: Cleaning-milling-packing
Highlight:

Rasper Garri Cassava Grinder

,

Large Capacity Cassava Grinder

,

Cassava Grinder Milling Equipment

Product Description

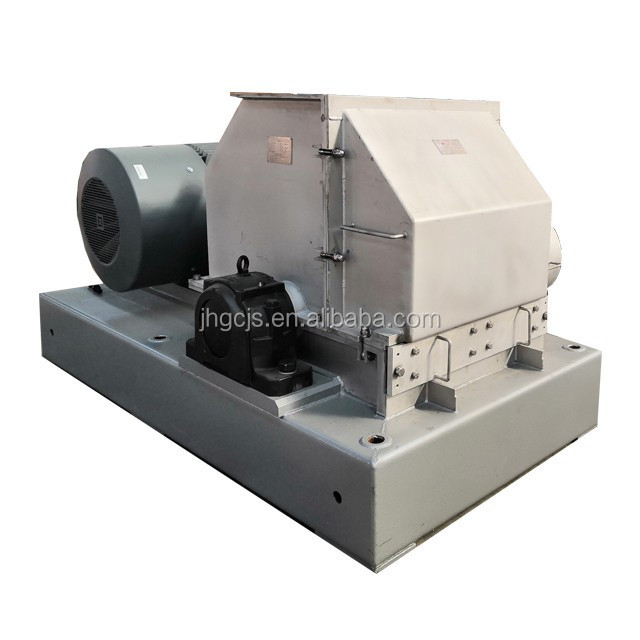

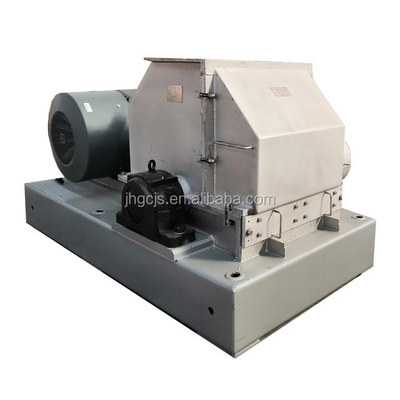

Large Capacity Rasper Garri Cassava Grinder Milling Equipment



sweet potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal organization is not easy to destroy, the use of repeated file grinding, fully destroy the potato block structure, can make the small starch particles can be successfully free from the root, improve the extraction rate of starch.



Key Technology & Innovation Potions


1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.



Main technical parameters



Model

DCM8435

DCM8450

DCM8465

DCM1070

Main shaft rotating speed(r/min)

2100

2100

2100

1470

Drum diameter(mm)

Φ840

Φ840

Φ840

Φ1100

Drum width(mm)

350

500

650

700

Power(Kw)

110

160

200

250

Capacity(t/h)

20-23

30-33

35-40

40-45

Dimension(mm)

2170x1260x1220

2170x1385x1250

2170x1650x1380

3000x1590x1500

Rasper Garri Cassava Grinder Milling Equipment Large Capacity 0Rasper Garri Cassava Grinder Milling Equipment Large Capacity 1

Our Services


Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .



Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.



After-sale service
1. Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3. One year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.



Why Choose Us


Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing,



engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical



personnel more than 30 people, can provide installation services overseas . The chairman of the board is professor wang yanbo, who is mainly



engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of



starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national



standards and 30 academic papers.



Rasper Garri Cassava Grinder Milling Equipment Large Capacity 2



FAQ


Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.



Q2. What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line



Q3: Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.


Warmly welcome to visit us!


Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.


Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;


Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
