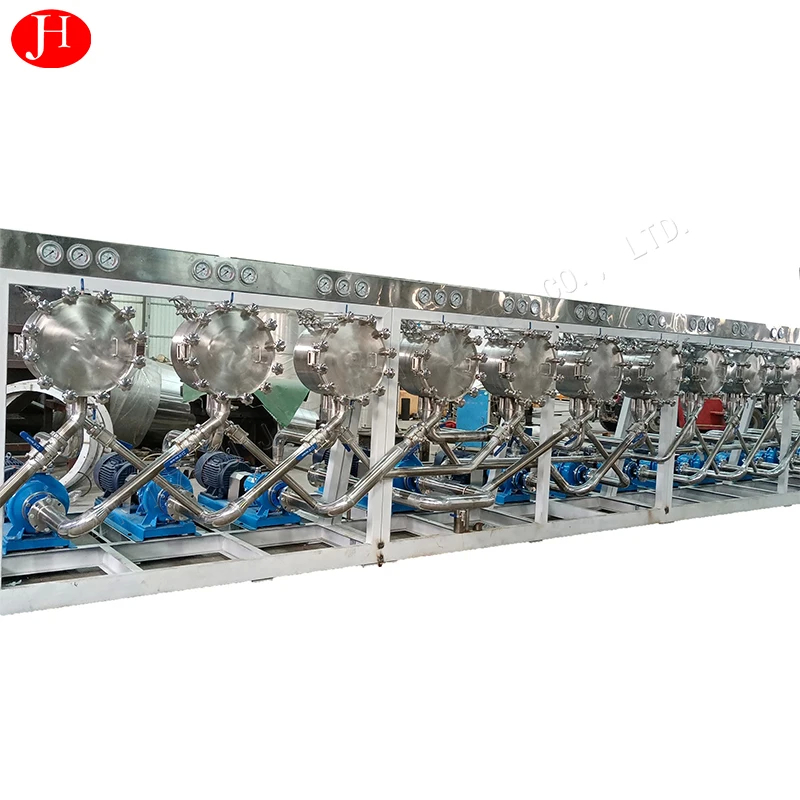

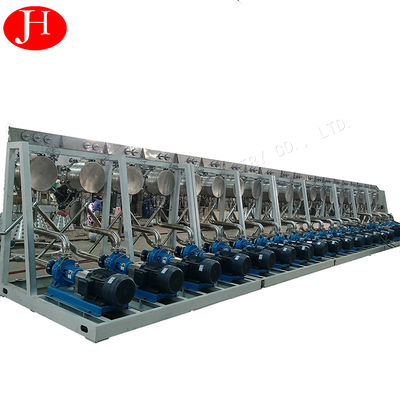

Sweet Potato Starch Hydrocyclone Processor for Continuous Processing Technolog
Product Details:
| Place of Origin: | china |
| Brand Name: | JINGHUA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Processing Type: | Continuous | Screen: | Stainless Steel |
|---|---|---|---|
| Material: | Stainless Steel | Control: | PLC Control |
| Advantage: | High Effective | Product Name: | Sweet Potato Starch Machine |
| Application: | Food Flour Grinding Mill Machine | Processing Type: | Cleaning-milling-packing |
Product Description
With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch, andmodifiedstarch.
Main technical parameters
|
Model |
XL325 |
XL438 |
XL516 |
XLS426 |
|
|
Plate quantity |
1 |
1 |
1 |
2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
|
Cylinder diameter(mm) |
362 |
438 |
516 |
426 |
|
|
Cylinder norm(mm) |
10,15 |
10,15 |
10,15 |
10,15 |
|
|
Feed Pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Inlet Size(mm) |
76 |
89 |
89 |
2* 89 |
|
|
Underflow Size(mm) |
48 |
48 |
57 |
76 |
|
|
Top flow Size(mm) |
57 |
57 |
76 |
2- 57 |
Advantages of hydro cyclone
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
6. Hydroclone designing is adopted to get better starch separation according to the features of different material.
7. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
8. Special sealing design, friendly operation.
Working principle
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
Real application case
There are four steps to making starch
1.Cleaning:To remove the stone sand and from the raw material.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
Our Factory
Our Workshop
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
