Stainless Steel Rotary Drum Washer , Potato Starch Washing Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DQXJ190x450 DQXJ190x490 DQXJ190x490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case/Customed |
| Delivery Time: | 5-14 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Potato Washing Machine | Material: | Stainless Steel |
|---|---|---|---|
| Operation: | Automatic | Advantage: | Large Capacity |
| Power: | 22Kw | Capacity: | 20-50 T/h |
| Drum Diameter: | 1905mm | Weight: | 5730Kg |
| High Light: | potato flour processing machinery,potato starch machine |
||
Product Description
Stainless Steel High Quality Rotary Washer Potato Starch Washing Machine
Product description
Rotary drum washer is applied to wash plantains, sweet potatoes and etc. Rotary washer is the washing section machine in flour processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.
Advantages of Rotary Washer
1. The whole machine adopts counter-current washing principle, the cleaning effect is good, can effectively remove mud, remove sand.
2. With reasonable feed structure, the crushing of material is less than 1%, which is more conducive to the extraction of starch..
3. The roller is made of high quality steel plate by CNC punching machine, durable.
The Working Principle of Rotary Washer
The washing machine is designed with counter-current washing, that is, the cleaning water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the skin of the material is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Main Technical Parameter of Rotary Washer
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity(t/h) | Power(Kw) | Dimension(mm) |
Weight(kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |

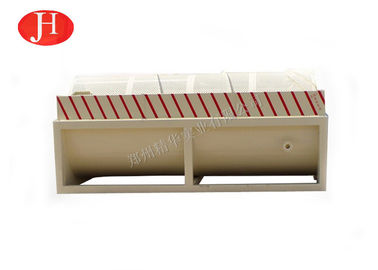

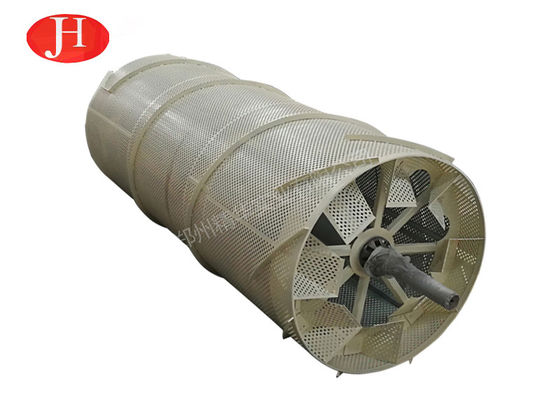

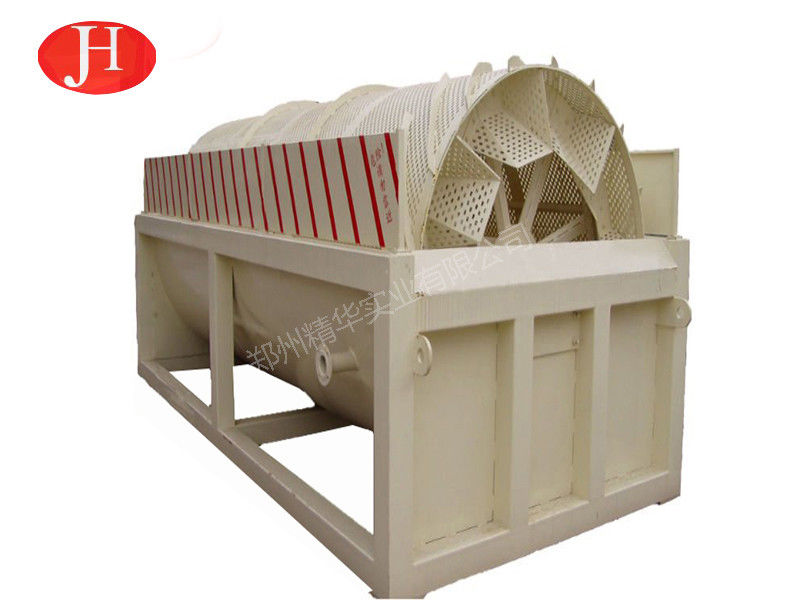

Product Show
Packing & Shipping
Packing:Customize the wooden case according to the size of the product,Each container can hold 4-6 pieces of products.
Delivery:14days after receiving pre-payment (on time according to contract strictly)
