Dehydration Centrifuge Sieve Potato Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DLS85 DLS100 DLS120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Centrifugal Sieve | Dimension: | 1640*2490*2222 Mm |
|---|---|---|---|
| Power: | 45Kw | Weight: | 2200 Kg |
| Customized: | Customized | Service: | Overseas Installation |
| Warranty: | 1 Years | Condition: | New |
| Highlight: | Potato Starch Centrifuge Sieve,Dehydration Potato Starch Making Machine,45Kw Potato Starch Dehydration Machine |
||
Product Description
Potato Starch Slurry Fiber Separator Dehydration Machine Centrifuge Sieve
Introduction of potato starch fiber sieve machine
Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.
Advantages of centrifuge sieve
1. Combining the latest technology and years’ experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Advanced surface treatment technology ensuring the good appearance and resistance of oil and dirt.
6. Nozzles tested by strict examination in pressure and flow rate.
7. Widely used for starch extraction in starch processing factory.
Main technical parameters
|
Model
|
Basket diameter(mm) | Main shaft speed(r/min) | Working model |
Power (Kw) |
Dimension (mm) |
Weight (t) |
| DLS85 | 850 | 1050 | continuous | 18.5/22/30 | 1200x2111x1763 | 1.5 |
| DLS100 | 1000 | 1050 | continuous | 22/30/37 | 1440x2260x1983 | 1.8 |
| DLS120 | 1200 | 960 | continuous | 30/37/45 | 1640x2490x2222 | 2.2 |
The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

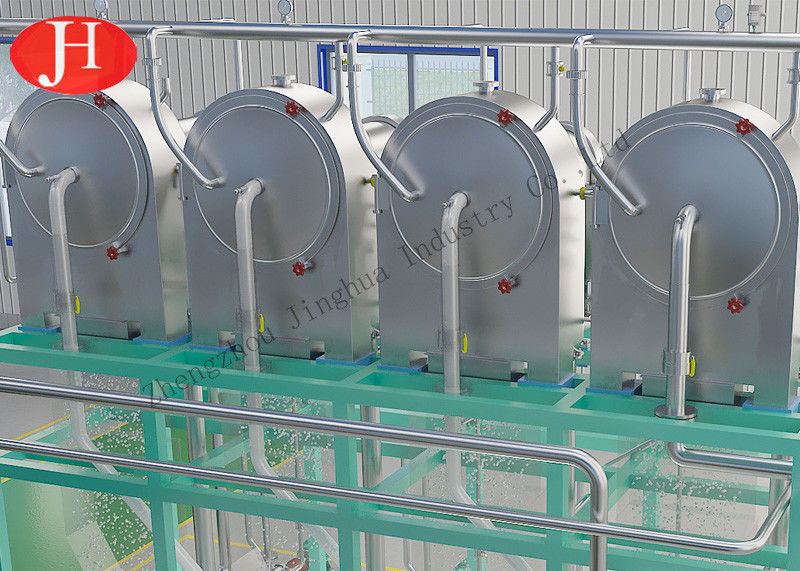

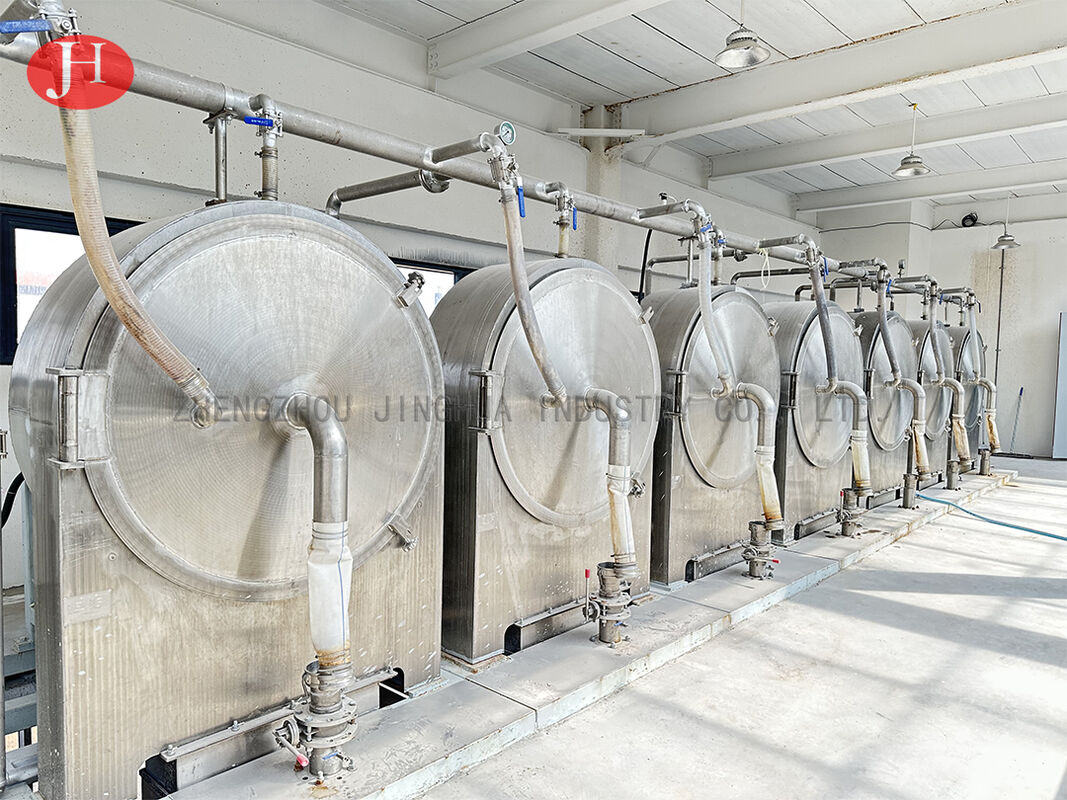

Real application case
Our Customer
Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
