Stainless Steel Potato Starch Rasper / Potato Starch Grinder Machine Big Capacity
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 DCM1070 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-14 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Application: | Potato Grinder Machine | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 20-45 T/h | Condition: | New |
| Useful Life: | 15years | Installation: | Yes |
| Customized: | Yes | Operation: | Automatic |
| Highlight: | potato flour processing machinery,potato starch machine |
||
Product Description
Potato Starch Making Machine Stainless Steel Big Capacity Rasper Potato Grinder Machine
Product Description
Potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal tissue is not easy to destroy, the use of the rasper repeatedly grinding, fully destroy the tissue structure of the potato, can make the small starch particles from the root of the free, improve the rate of starch extraction.
Main features of rasper
1. high rotating speed,even and fine rasping effect ,high starch dissociation.
2. Over one hundred of blades distributed on rotary drum.
3. Observation window to inspect running situation of sae blades.
4. SKF bearings from Sweden and excellent belt from Germany are used.
5. Widely used in potato starch and cassava starch processing to crash and rasp raw materials.
Main technical parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed (r/min) | 2100 | 2100 | 2100 | 2100 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 | Φ840 |
| Drum width (mm) | 350 | 500 | 650 | 700 |
| Motor power (Kw) | 110 | 160 | 200 | 250 |
| Capacity (t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension (mm) | 2170*1260*1220 | 2170*1385*1250 | 2170*1650*1380 | 3000*1590*1500 |

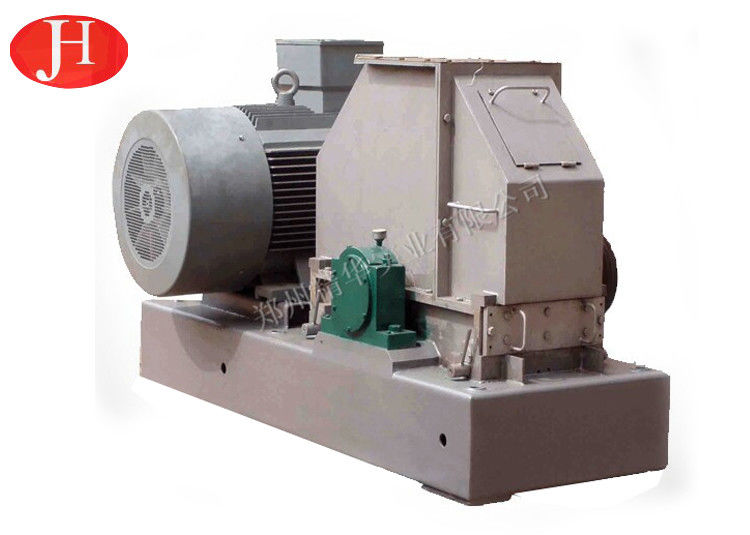

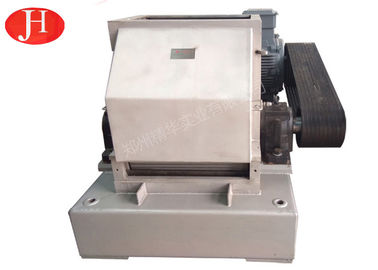

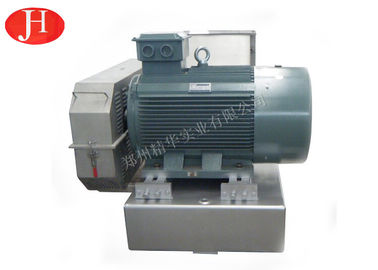

Product Show
Real Application Case
