Electric Potato Starch Making Machine Potato Crusher Fully Stainless Steel Structure
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DPS5050 DPS5076 DPS50100 DPS60100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Potato Cutting Machine | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 10-20 T/h | Blade Number: | 9-15 Pieces |
| Energy: | Electric | Advantage: | Large Capacity |
| Useful Life: | 15years | Working Type: | Continuous Working |
| Voltage: | 220V Or 380V | Packing: | Wooden Case/Customed |
| High Light: | potato flour processing machinery,potato starch manufacturing machine |
||
Product Description
Large Capacity Potato Crusher Cutter Making Machine Potato Starch Production Line
The introduction of crusher
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.
Features of crusher
1. In dependent research ,fully stainless steel to be sure there is no corrosion
2. We have as long as 15 years’ experience in development and research of starch processing subject.
3. This machine has features of low energy consumption, high capacity, fine particles and easy installation, easy maintenance.
4. To avoid duplication of material cutting and improve cutting ability , Blade is specially made and is durable.
Main Technical parameters
| Model |
Blade Number (piece) |
Rotor length (mm) |
Power (Kw) |
Dimension (mm) |
Weight (kg) |
Capacity (t/h) |
|
| DPS5050 | 9 | 550 | 7.5/11 | 1030x1250x665 | 650 | 10-15 |
Diameter of rotor:Φ480mm Speed of rotor:1200r/min |
| DPS5076 | 11 | 760 | 11/15 | 1250x1300x600 | 750 | 15-30 | |
| DPS50100 | 15 | 1000 | 18.5/22 | 1530x1250x665 | 900 | 30-50 | |
| DPS60100 | 15 | 1000 | 30/37 | 1530x1400x765 | 1100 | 60-80 |

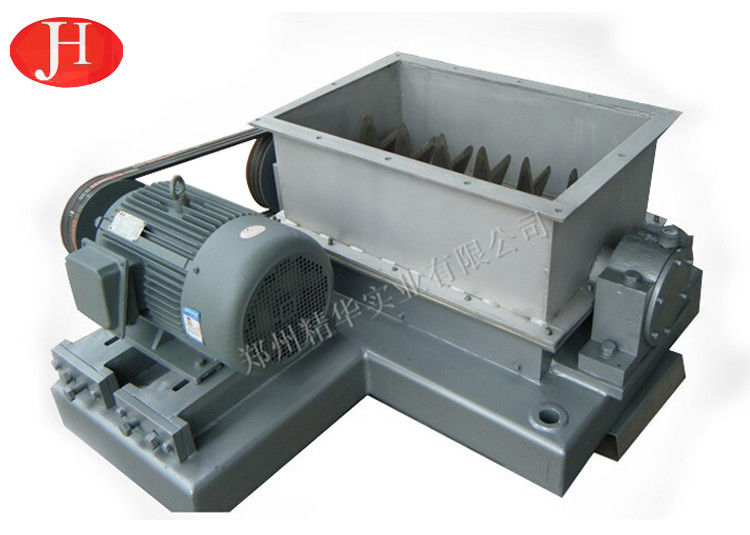

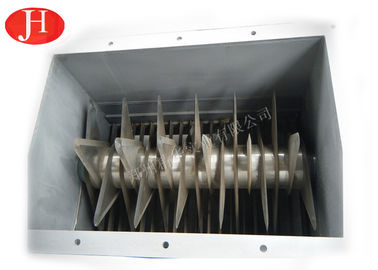

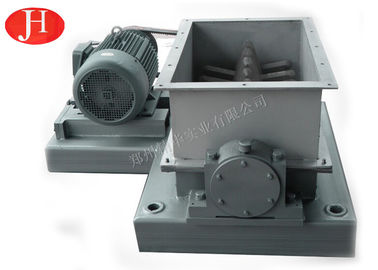

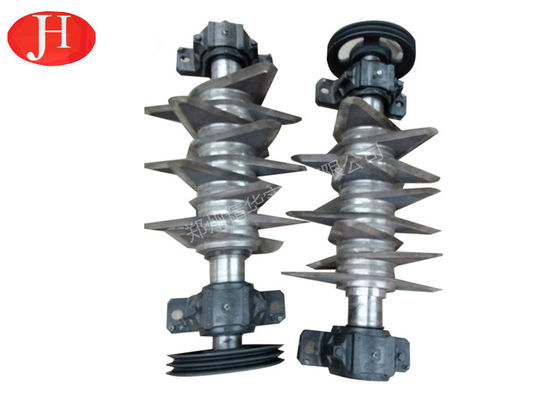

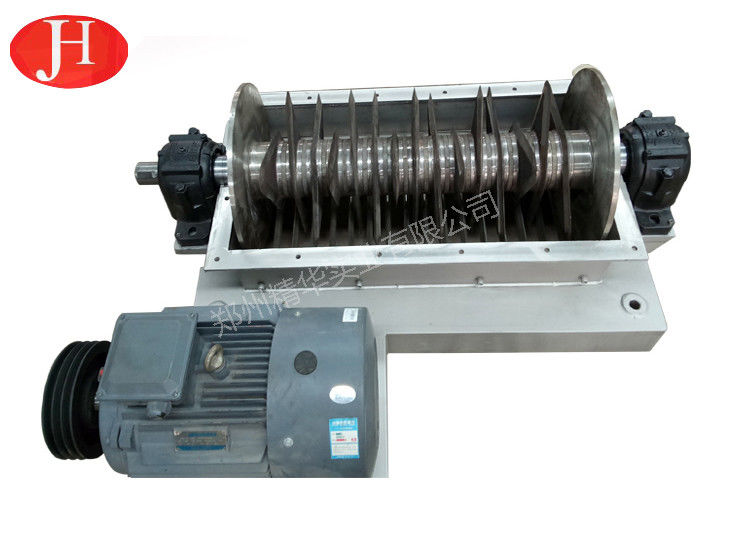

Product Show
