12t/H Hydro Cyclone Potato Starch Milk Dehydrator
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | XL325 XL438 XL516 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Hydro Cyclone | Advantage: | High Quality |
|---|---|---|---|
| Dimension: | 5500*1500*3500 Mm | Useful Life: | 20 Years |
| Capacity: | 3-12 T/h | Service: | Overseas Installation |
| Warranty: | 1 Years | Energy: | Electric |
| Power: | 45Kw | Condition: | New |
| Highlight: | Potato Starch Milk Dehydrator,12t/H Starch Milk Dehydrator,45Kw Starch Milk Dehydrator |
||
Product Description

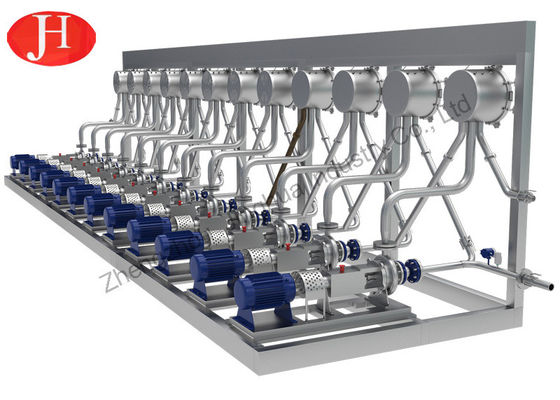

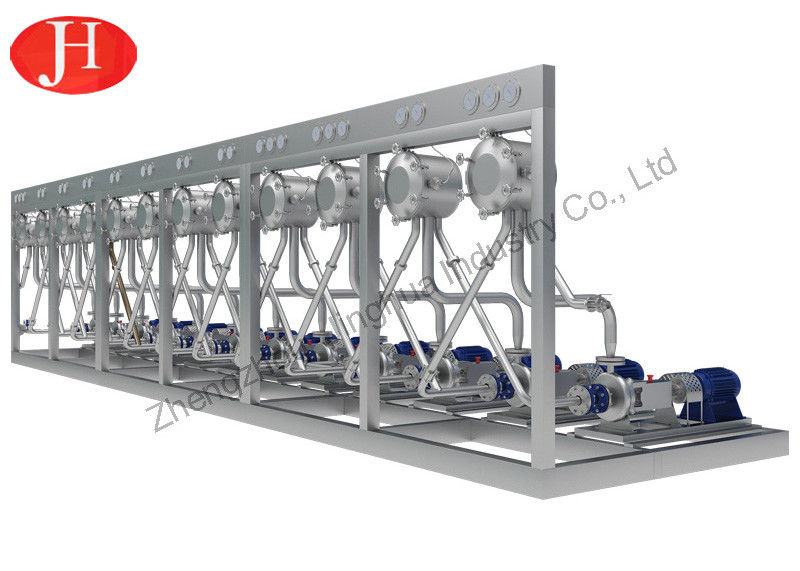

New Condition Hydro Cyclone Starch Milk Dehydrator Potato Starch Making Machine
Description of potato starch milk dehydrator machine
The cyclone is mainly used for the dehydration, washing and concentration of starch pulp such as wheat, potato, sweet potato and cassava. Widely used in sweet potato starch, cassava starch, potato starch, corn starch, wheat starch, pea starch, konjac starch and other starch production line.
Advantages of hydro cyclone
1. Fully stainless steel to be sure there is no corrosion.
2. Widely used for starch extraction in starch processing plants.
3. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
4. Hydroclone designing is adopted to get better starch separation according to the features of different material.
5. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
6. Special sealing design, friendly operation.
Main technical parameters
| Model | XL325 | XL438 | XL516 | XLS426 | |
| Plate quantity | 1 | 1 | 1 | 2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
| Cylinder diameter(mm) | 362 | 438 | 516 | 426 | |
| Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 | |
| Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Inlet Size(mm) | 76 | 89 | 89 | 2* 89 | |
| Underflow Size(mm) | 48 | 48 | 57 | 76 | |
| Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Working principle
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Our Advantage
Zhengzhou Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory,Can ensure the processing and delivery cycle,engineering and technical personnel more than 30 people, can provide installation services overseas and custom product for you.Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.Can provide high quality products for you.
