Starch Rasper Grinder Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 DCM1070 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case/Customed |
| Delivery Time: | 5-14 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Application: | Cassava Grinder Machine | Capacity: | 20-45 T/h |
|---|---|---|---|
| Condition: | New | Customed: | Yes |
| Operation: | Automatic | Installation: | Yes |
| Warrantly: | 12 Months | Energy: | Electric |
| High Light: | Cassava Starch Making Machine,Cassava Starch Processing Machine |
||
Product Description
Long Working Time Stainless Steel Rasper grinder Cassava Starch Production Line
Product Description
Rasping is the first step in the cassava starch process.The goal is to open all the tuber cells, so that all the starch granules are released.The slurry obtained can be considered as a mixture of pulp (cell walls), fruit juice, and starch.With modern high-speed rappers, rasping is a one-pass operation only.An even feed of the rasps is essential for a steady flow throughout the rest of the plant.
Main features of Rasper
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
Main technical parameter
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed | 2100 r/min | 2100 r/min | 2100 r/min | 1470 r/min |
| Drum diameter | Φ840 mm | Φ840 mm | Φ840 mm | Φ1100 mm |
| Drum width | 350 mm | 500 mm | 650 mm | 700 mm |
| Power | 110 Kw | 160 Kw | 200 Kw | 250 Kw |
| Capacity | 20-23 t/h | 30-33 t/h | 35-40 t/h | 40-45 t/h |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |

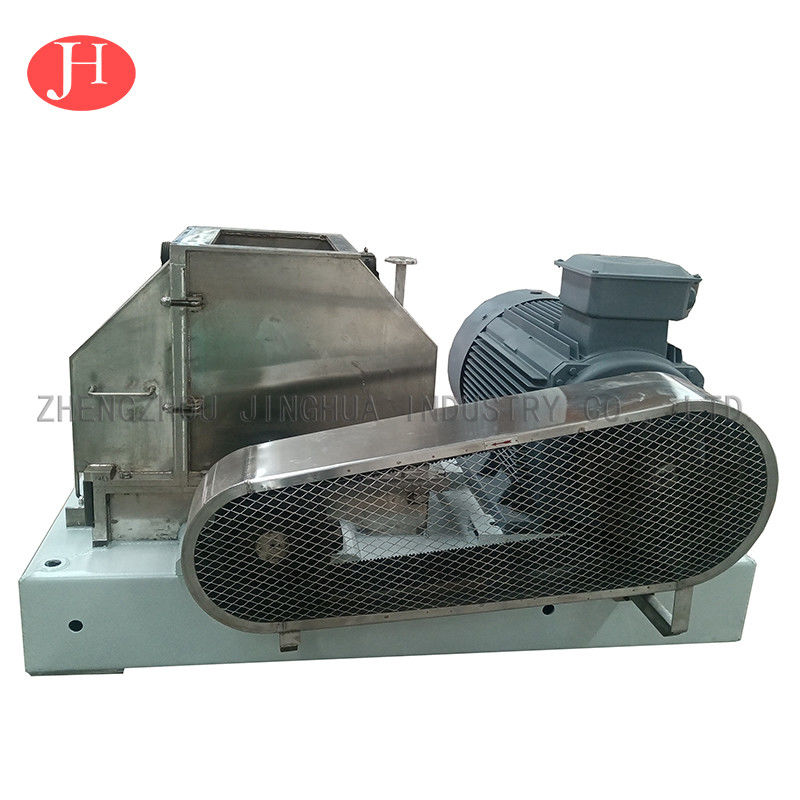

Product Show
