industrial Automatic Rasper Sweet Potato Starch Grinder Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 14-30 work days |
| Payment Terms: | L/C, D/P, T/T |
|
Detail Information |
|||
| Application: | Sweet Potato Grinder Machine | Material: | Stainless Steel |
|---|---|---|---|
| Useful Life: | 15 Years | Energy: | Electric |
| Installation: | Yes | Maintain: | Yes |
| Voltage: | 220V Or 380V | Packing: | Wooden Case / Customed |
| High Light: | sweet potato machine,starch processing machine |
||
Product Description

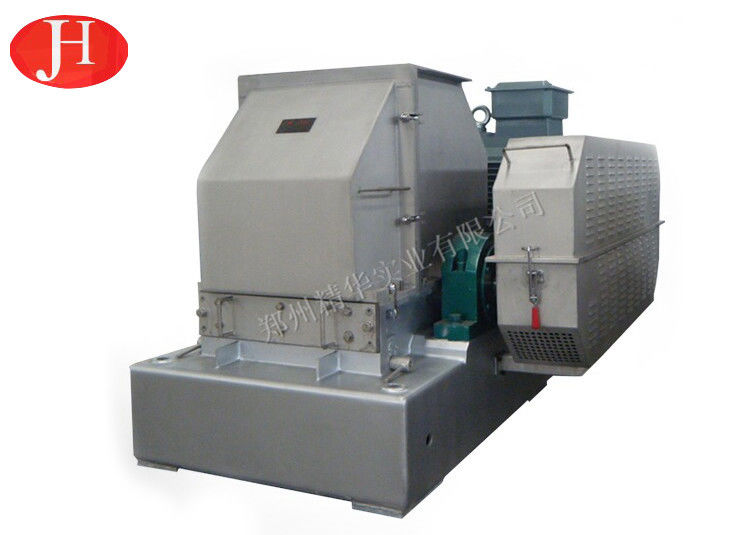

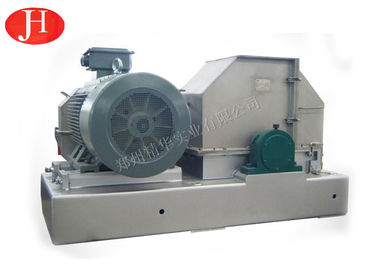

New Customized automatic Rasper Sweet Potato Starch Grinder Making Machine
Product Description
Sweet potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal tissue is not easy to destroy, the use of the rasper repeatedly grinding, fully destroy the tissue structure of the potato, can make the small starch particles from the root of the free, improve the rate of starch extraction.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
Working Principle of Rasper

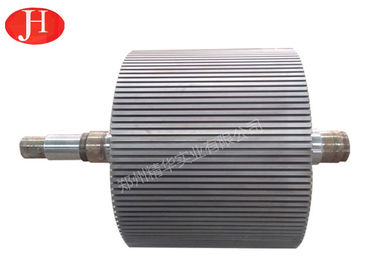

Material through above imported into the file cabinet body, by the impact of the high-speed movement of the saw blade, cutting, grinding and crushing, rotor lower Settings screen mesh, grinding material is less than the screen hole size of material through the sieve plate, is greater than the screen hole size of the particles were blocked on sieve plate continued to hit by the saw blade and grinding, finally through the sieve plate outside.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Product Show
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
