High Efficiency Hydro Cyclone Machine For Concentrate And Separate Starch
Product Details:
Place of Origin: | Zhengzhou City,China |
Brand Name: | JINGHUA |
Certification: | CE |
Model Number: | XL-325 XL-438 XL-516 XLS-530 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Customize the wooden case according to the size of the product,Each container can hold 4-6 pieces of products |
Delivery Time: | 5-14 work days after receiving pre-payment |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 20 sets/month |
Detail Information |
|||
Application: | Sweet Potato Starch Slurry Dewater Machine | Customized: | Customized |
---|---|---|---|
Useful Life: | 15 Years | Packing: | Wooden Case / Customed |
Voltage: | 220V Or 380V | Installation: | Yes |
Condition: | New | Capacity: | 15 T/h |
High Light: | corn starch production line,cassava starch processing line |
Product Description
Easy operation high efficiency hydro Cyclone Starch Dehydration Production Line

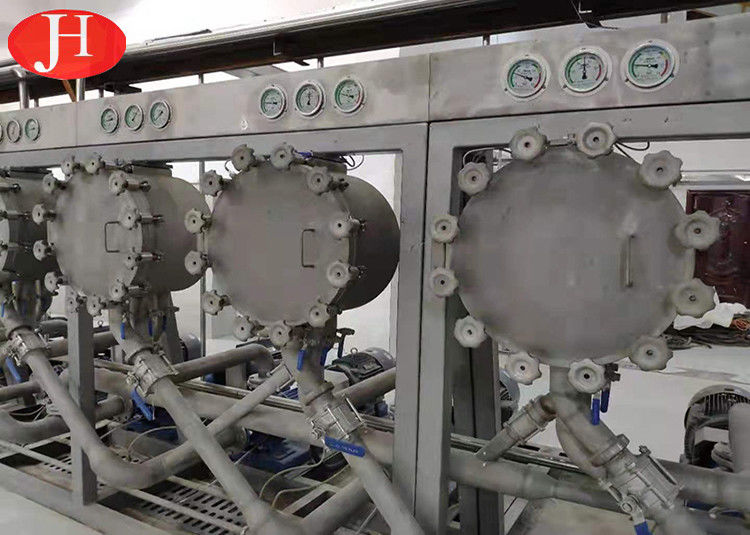

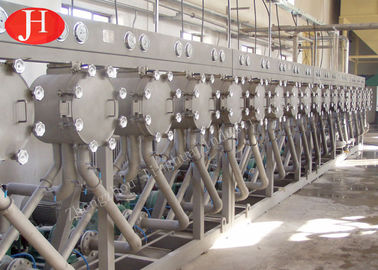

Description of hydrocyclone
hydrocyclone for zhengzhou jinghua industry company independent research and development, patented products.It can be used to concentrate and separate sweet potato, potato and wheat starch.
Main Features of Hydrocyclone
1. Advanced surface treatment craft,oil and dirty resisting.
2. It has multifunction of concertration,recovery,washing and separation for hydrocyclone group.
3. Hydrocyclone designing is adopted to get better starch separation according to the features of different material.
4. Special sealing design,friendly operation.
Main Technical Parameters
Model | XL362 | XL438 | XL516 | XLS426 | |
Plate quantity | 1 | 1 | 1 | 2 |
Group capacity: 3-12t/h
7.5-45kw/stage |
Cylinder diameter(mm) | 362 | 438 | 516 | 426 | |
Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 | |
Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
Inlet Size(mm) | 76 | 89 | 89 | 2* 89 | |
Underflow Size(mm) | 48 | 48 | 57 | 76 | |
Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Our Company
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Our Workshop
Our Workers
