Rotary Drum Vacuum Filter Machine For Sweet Potato Starch Processing
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | KLG12 KLG20 KLG24 KLG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 14-30 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Sweet Potato Starch Dewater Machine | Energy: | Electric |
|---|---|---|---|
| Useful Life: | 15 Years | Installation: | Yes |
| Maintain: | Yes | Packing: | Wooden Case / Customed |
| Customed: | Customed | Power: | 4 Kw |
| High Light: | sweet potato machine,sweet potato starch making machine |
||
Product Description
Product Description
Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Main Features of vacuum filter
1. Fully stainless steel for parts contacting with material,compact structure and nice design.
2. Speed of totating drum can be adjusted according to actual site.
3. Material unloaded through blade,which is made of high rigid alloy and can be adjusted.
4. Low energy consumption,small area,friendly operation and stable running.
Working Principle of Vacuum Filter
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation.When working, the rotary drum is driven by a speed-regulating motor to rotate in the slurry tank, and the vacuum pump creates a vacuum inside the rotary drum,Under the action of differential pressure,the suspended solution of the material forms a uniform coating on the surface of the drum,When it reaches a certain thickness, the pneumatic scraper will scrape down the starch, the filtrate into the soda separator, so as to achieve the purpose of starch, water, gas separation.
Main Technical Parameters
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power(Kw) | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(Kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |

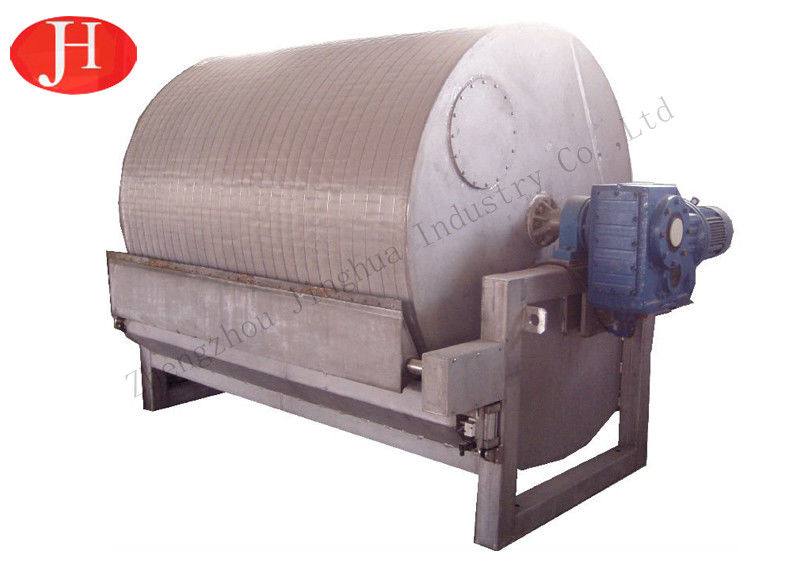

Product Show

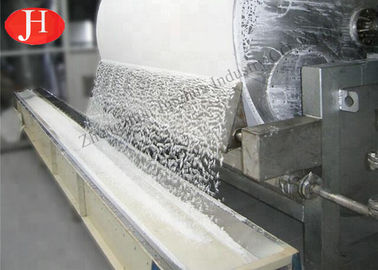

Real Application Case
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery :14days after receiving pre-payment (on time according to contract strictly).
