Energy Save Cage Cleaning Machine For Starch Raw Material Sand Remove
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GS100 GS120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Potates Desand Machine | Material: | Stainless Steel |
|---|---|---|---|
| Useful Life: | 15 Years | Maintain: | Yes |
| Capacity: | 15-25 T/h | Installation: | Yes |
| Energy: | Electric | ||
| Highlight: | potato starch production line,cassava starch processing line |
||
Product Description

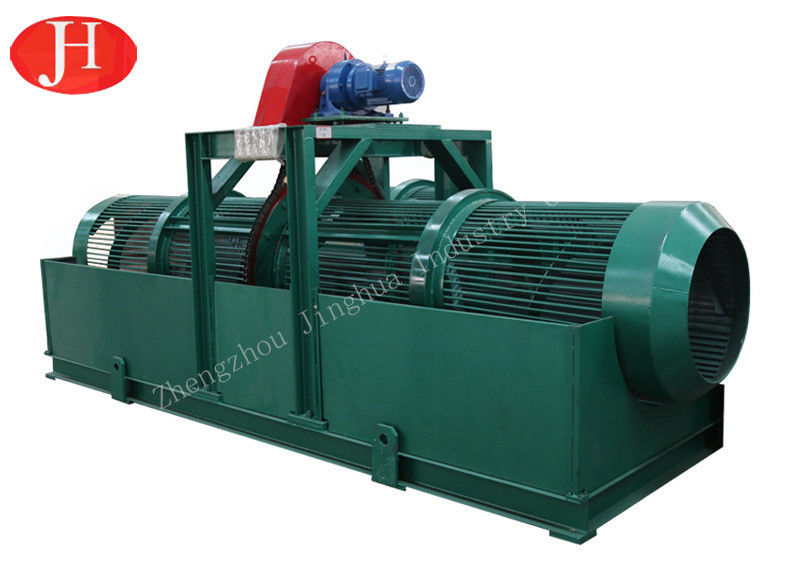

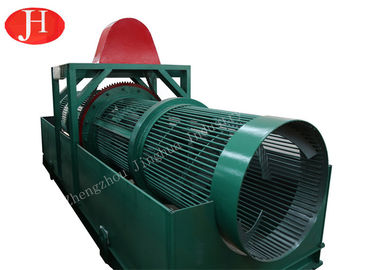

Save Energy Raw Material Sand Remove Cage Cleaning Machine Starch Production Line
Product Description
Cage washer is mainly used for dry sieving before potato cleaning,Stone removal effect is good, can effectively save water in the cleaning process.
Main Features of Cage Cleaning Machine
1. Fully stainless steel to be sure there is no corrosion

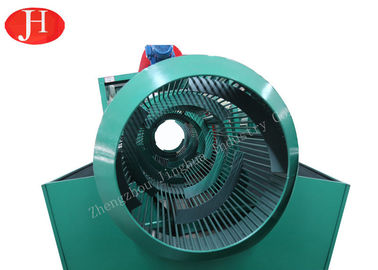

2. Inner spiral is adopted to guide material which going under the pushing.
3. Simple structure low power consumption, big capacity, well cleaning result
4. Stable operation and low damage to be profitable for starch extraction.
Main Technical Parameters
| Model |
Drum diameter (mm) |
Drum speed (r/min) |
Drum lenght (mm) |
Power (Kw) |
Weight (kg) |
Capcity (t/h) |
Dimension (mm) |
| GS100 | 1000 | 18 | 4000-6500 | 5.5/7.5 | 2800 | 15-20t/h | 4000*2200*1500 |
| GS120 | 1200 | 18 | 5000-7000 | 7.5 | 3500 | 20-25t/h | 7000*2150*1780 |
