Product Details:

Place of Origin: Zhengzhou City,China
Brand Name: JINGHUA
Certification: CE
Model Number: KLG12 KLG20 KLG24

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Customize the wooden case according to the size of the product,Each container can hold 4-6 pieces of products
Delivery Time: 5-14 work days after receiving pre payment
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 sets/month
Get Best Price Contact Now

Detail Information

Application: Glucose Dehydration Making Machine Energy: Electric
Packing: Wooden Case / Customed Installation: Yes
Power: 4Kw Service: Good Service
Useful Life: 15 Years Capacity: 8t/h
Highlight:

glucose packaging machine

,

glucose manufacturing machine

Product Description

Large Capacity Vacuum Filter Glucose Dehydration Machine Glucose Making Machine



Product Description

Vacuum drum suction filter machine is used in starch processing industry to dehydrate starch and glucose.


Features of vacuum filter
1. Fully stainless steel with no corrosion to the raw material.
2. Compact structure and nice design.
3. Speed of rotating drum can be adjusted according to actual site.
4. Material uploaded through blade, which is made of high rigid alloy and can be adjusted.
5. Lower energy consumption, smaller area.Than centrifuge.


The working principle of vacuum filter

Vacuum drum suction filter machine USES vacuum suction filter method to achieve the separation of solid particles and liquid. When working, the rotating drum is driven by a speed-regulating motor to rotate in the slurry tank. The vacuum pump creates a vacuum inside the rotating drum. Under the action of pressure difference, the suspended solution of the material forms a uniform coating on the surface of the rotating drum.When a certain thickness is reached, the starch is scraped off by pneumatic scraper,The filtrate enters the steam separator to separate starch, water and gas.



Technical Parameters

Model KLG12 KLG20 KLG24 KLG34
Vacuum degree(Mpa) 0.04~0.07 0.04~0.07 0.04~0.07 0.04~0.07
Content of solid(%) ≥60 ≥60 ≥60 ≥60
Feeding density(Be°) 16-17 16-17 16-17 16-17
Capacity(t/h) 4 6 8 10
Power 3 4 4 4
Drum rotary speed(r/min) 0-7.9 0-7.9 0-7.9 0-7.9
Weight(kg) 3000 4000 5200 6000
Dimension(mm) 3425x2312x2213 4775x2312x2213 4785x2630x2600 5060x3150x3010

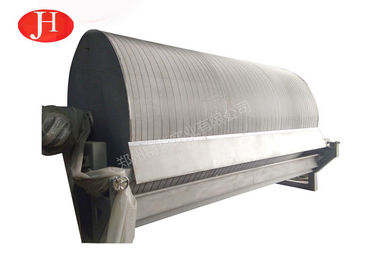

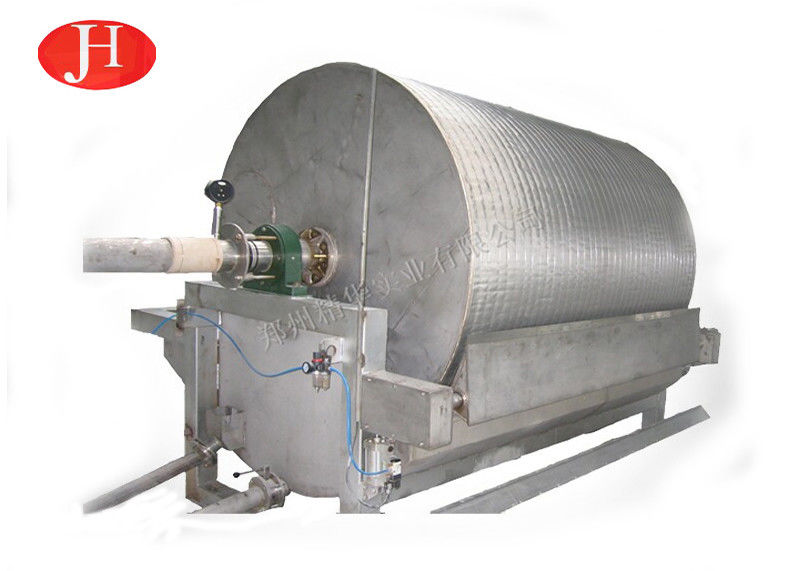

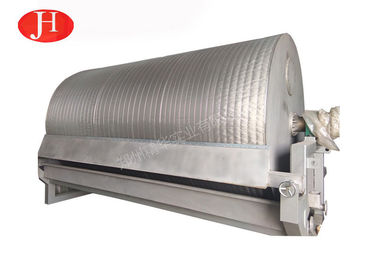

Product Show

Large Capacity Vacuum Drum Suction Filter Machine , Glucose Dehydration Machine 0

Large Capacity Vacuum Drum Suction Filter Machine , Glucose Dehydration Machine 1Large Capacity Vacuum Drum Suction Filter Machine , Glucose Dehydration Machine 2

Our Service

Pre-sale service

1. Accept customer consultation and customize products according to customer requirements.

2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.



Sale service

1. The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.

2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.



After-sale service

1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.

2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.

3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
