Professional Sweet Potato Starch Machine , Sweet Potato Grinder Rasper
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Sweet Potato Grinder Machine | Energy: | Electric |
|---|---|---|---|
| Capacity: | 30 T/h | Installation: | Yes |
| Power: | 110 Kw | Drum Diameter: | 840 Mm |
| Material: | Stainless Steel | Packing: | Wooden Case |
| Highlight: | sweet potato machine,sweet potato starch making machine |
||
Product Description

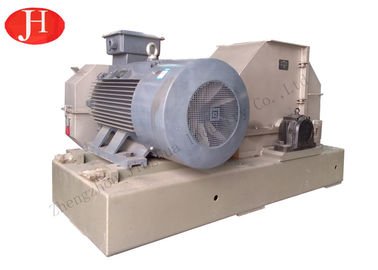

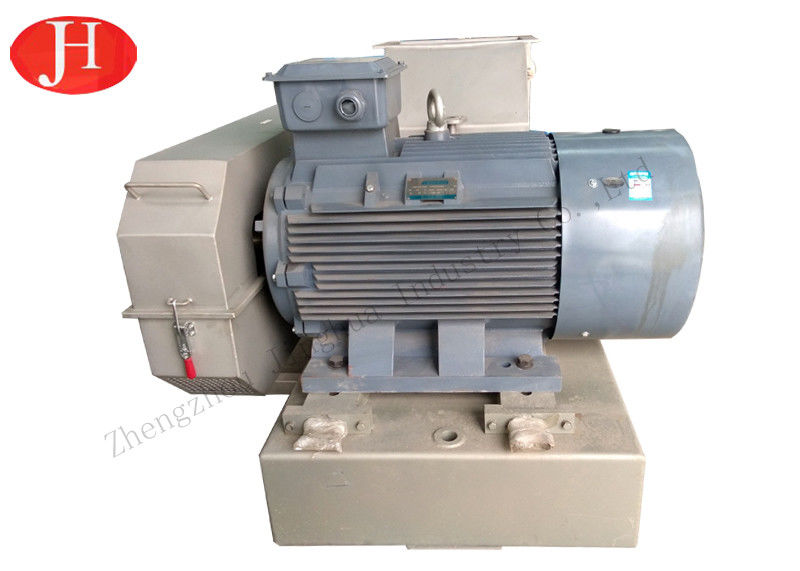

Customized new condition rasper Sweet potato starch grinder making machine
Product Description
Sweet potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal tissue is not easy to destroy, the use of the rasper repeatedly file, fully destroy the structure of the potato block, can make the small starch particles can be successfully free from the root of the block, improve the rate of starch extraction.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Components(bearings for example) are imported from Europe with longer service life
4. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.

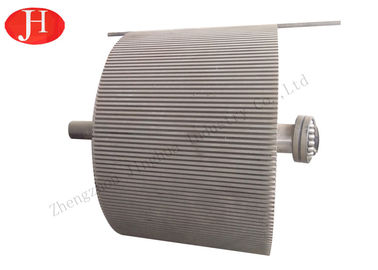

5. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
6. Unique drum groove and layering instrument design benefits saw blade changing.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
