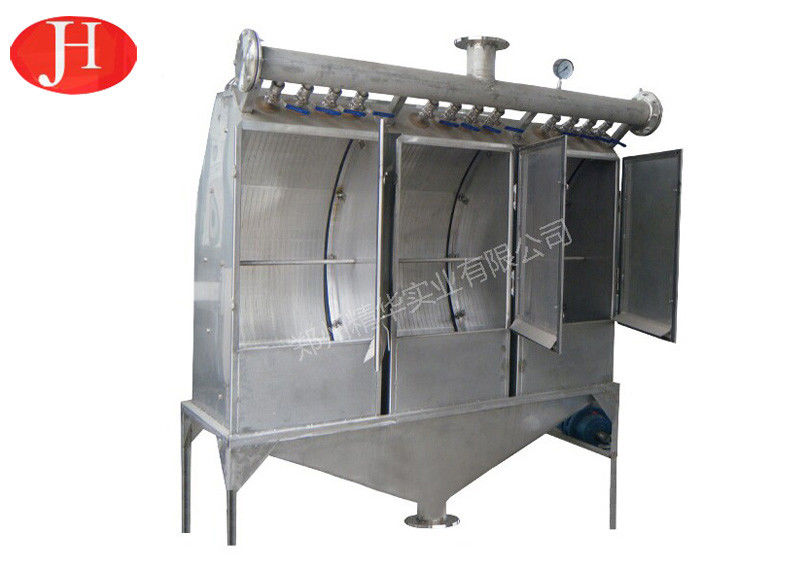

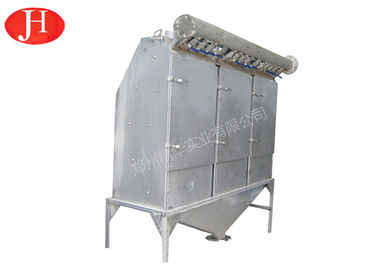

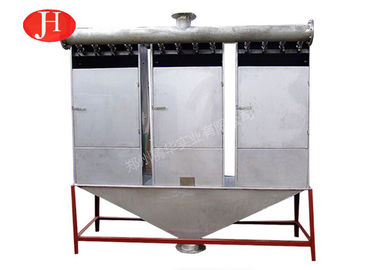

Pressure Arc Sieve Corn Starch Processing Machine High Performance Compact Structure
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | QS-585 QS-710 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Product Name: | Pressure Arc Sieve | Line: | Corn Starch Processing Line |
|---|---|---|---|
| Application: | Corn Starch Dehydrator Making Machine | Useful Life: | 20 Years |
| Capacity: | 10 T/h | Weight: | 600 Kg |
| Energy: | Electric | Condition: | New |
| Highlight: | maize starch plant machinery,corn starch processing machine |
||
Product Description
Top Quality Pressure Arc Sieve Corn Starch Dehydrator Making Machine
Description of corn starch dehydrator making machine
The pressure arc sieve is a static and efficient screening device.It separates and grades wet materials by pressure.Applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.
The working principle of pressure arc sieve
Slurry from the nozzle to a certain speed (15 to 25 m/S) by the sieve surface tangent into the concave surface, the high feed speed make the material on the screen by centrifugal force, gravity and sieve effect on resistance of the material. The material flow to the other by a sieve is a sieve in the process of screening the sharp edge material cutting action, the starch in the material and a lot of water through a sieve seam become undersize, while fiber fine slag flowed from the sieve surface end and be on the screen content.
Main technical parameters
| Model | Sieve radian |
Width of sieve seam (micron) |
Capacity (㎥/h) |
Feed pressure (Mpa) |
Sieve width (mm) |
| QS-585 | 1200 | 50,75,100,120 | 34-46 | 0.2-0.4 | 585 |
| QS-585×2 | 1200 | 50,75,100,120 | 70-100 | 0.2-0.4 | 585×2 |
| QS-585×3 | 1200 | 50,75,100,120 | 110-140 | 0.2-0.4 | 585×2 |
| QS-710 | 1200 | 50,75,100,120 | 60-80 | 0.2-0.4 | 710 |
| QS-710×2 | 1200 | 50,75,100,120 | 120-150 | 0.2-0.4 | 710×2 |
| QS-710×3 | 1200 | 50,75,100,120 | 180-220 | 0.2-0.4 | 710×2 |
Our service of pressure arc sieve
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14days after receiving pre-payment (on time according to contract strictly).
