Customized Corn Starch Production Line Pipe Bundle Dryer 12 Months Warranty
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GZG60 GZG100 GZG150 GZG300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Product Name: | Pipe Bundle Dryer | Line: | Corn Starch Processing Line |
|---|---|---|---|
| Useful Life: | 20 Years | Customized: | Customized |
| Power: | 5.5 Kw | Weight: | 9000 Kg |
| Warranty: | 12 Months | Condition: | New |
| Highlight: | maize starch plant machinery,corn starch processing machine |
||
Product Description

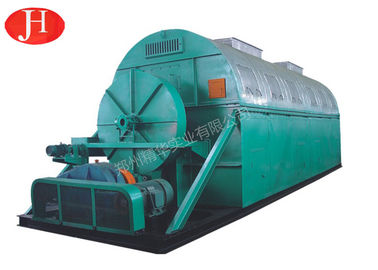

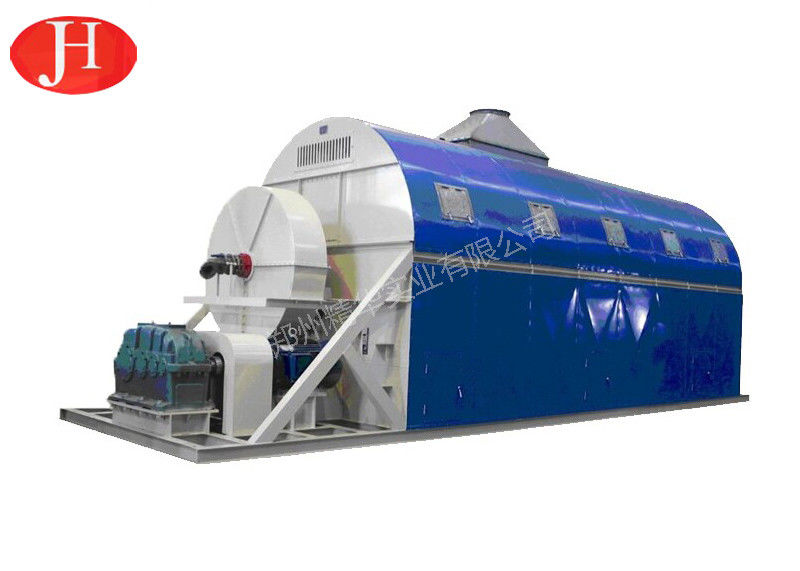

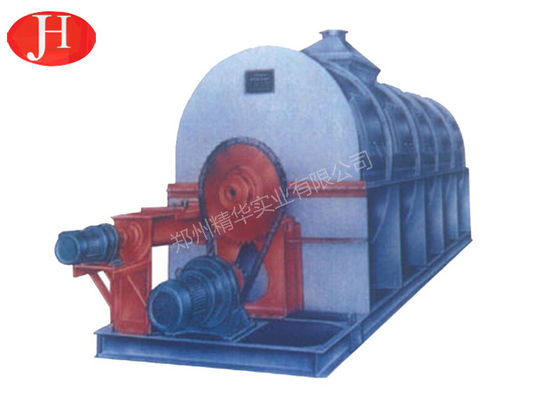

High Production Corn Starch Dry Making Machine Pipe Bundle Dryer
Description of corn starch dry machine
Pipe bundle dryer is widely used in starch industry for drying germ, fiber and gluten. It is widely used in corn starch and other starch enterprises.The machine has virtues of low steam consumption, big production quantity, low noise and less occupied area.The drying area of from 40sqm to 1000sqm.
The working principle of corn starch dry machine
Using the principle of heat conduction and radiation, the material is sent into the dryer by spiral conveyer,under the agitation of the rotating tube bundle plate, it moves from the feeding end to the feeding end,Heat absorption and moisture loss are completed in the movement, and the dryer is in a negative pressure state during production,The steam direction is opposite to the material direction, the energy saving effect is good, in the starch industry for the drying of germ, fiber, gluten.
Main technical parameters
| Materials | Germ | Corn fiber | Corn protein |
| Inlet water content | 55% | 60% | 45% |
| Outlet water content | 3~5% | 10~12% | 12~13% |
| Drying intensity (evaporation kg water/ m2) | 2.5~3 | 4.8 | 4.7 |
| Model | Outline dimension | power(kw) | Weight (T) |
| GZG60 | 6100*1600*2160 | 5.5 | 9 |
| GZG100 | 7800*1900*2460 | 7.5 | 13.5 |
| GZG150 | 7100*2200*2750 | 11 | 19.5 |
| GZG300 | 8800*2460*3180 | 18.5 | 26.5 |
| GZG500 | 10980*2900*4000 | 37 | 50 |
| GZG650 | 11190*3200*4300 | 55 | 67 |
| GZG1000 | 11800*3660*4770 | 110 | 91 |
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14days after receiving pre-payment (on time according to contract strictly).
