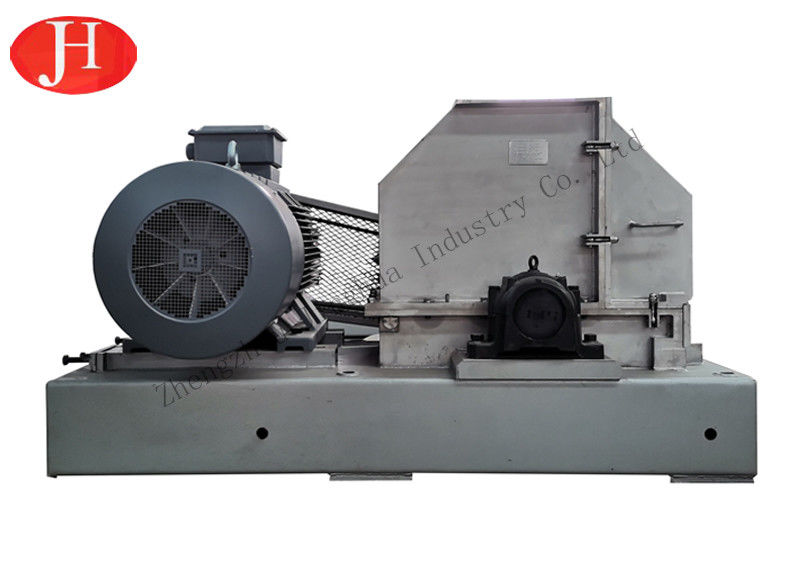

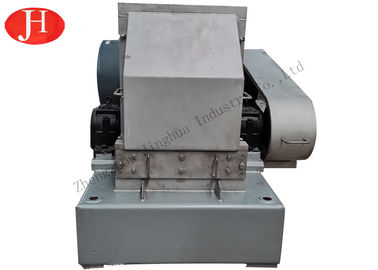

High Speed 250Kw Rasper Sweet Potato Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Dimension: | 3000*1590*1500 Mm | Useful Life: | 20 Years |
|---|---|---|---|
| Condition: | New | Product Name: | Rasper |
| Application: | Sweet Potato Starch Grinder | Energy: | Electric |
| Service: | Overseas Installation | Warranty: | 1 Year |
| Highlight: | Rasper Sweet Potato Starch Machine,Sweet Potato Starch Grinder |
||
Product Description
Easy Operation 25Kw Rasper Sweet Potato Starch Grinder Making Machine
1. Description rasper
The rasper high speed crushing raw materials, destroy the fiber structure, starch particles free, for the company's high-tech products and patented technology products. Widely used in canna, cassava, potato and other materials such as secondary grinding.
Advantages of rasper
1. Engine base props up all components, which rotor and bearings are all fixed on.

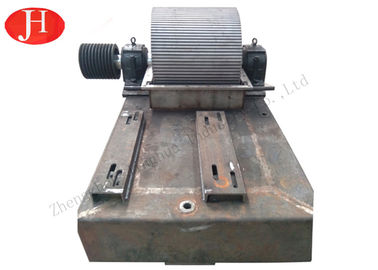

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. 2 combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
Working principle
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.
Main technical parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width (mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity (t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
2. Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
3. Why Choose Us
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
4. Our Service
1. After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;
2. After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.
3. After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.
