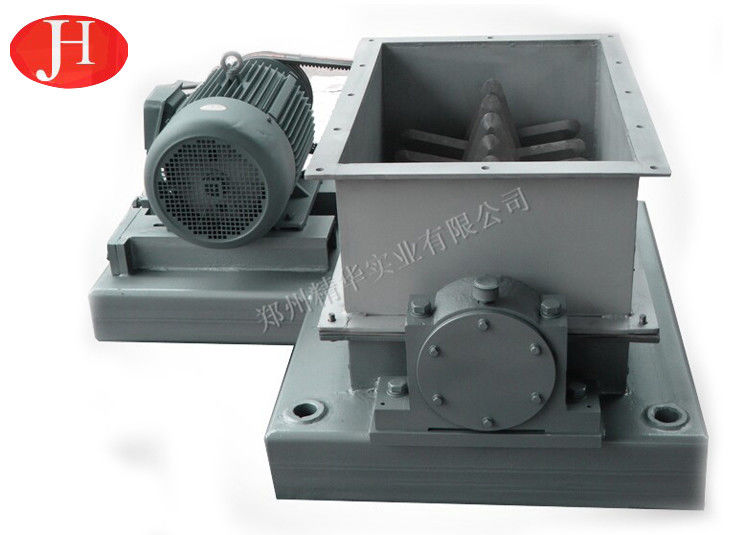

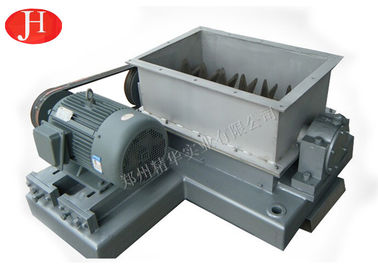

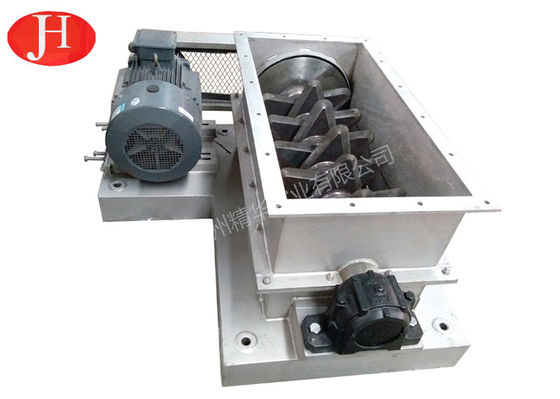

SS 1200R/Min 37Kw Crusher Potato Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DPS5050 DPS5076 DPS50100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Crusher | Energy: | Electric |
|---|---|---|---|
| Condition: | New | Useful Life: | 20 Years |
| Capacity: | 10-40 T/h | Voltage: | 220V Or 380V |
| Service: | Overseas Installation | Speed Of Rotor: | 1200 R/min |
| Highlight: | Potato Starch Crusher Machine,37Kw Potato Starch Machine |
||
Product Description
Paten Product 37 Kw Crusher Sweet Potato Starch Cutting Mill Processing Machine
1. Description of sweet potato crusher
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.
Advantages of crusher
1. In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
2. Newly designed with compact structure,easy disassembly and low maintenance cost.
3. Small volumes with large capacity,medium speed,low energy consumption and steady operation.
4. To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
5. Parts contact with material are made of stainless steel,to ensure materials not contaminated.
6. The machines is widely used for cracking of big material.
Working principle

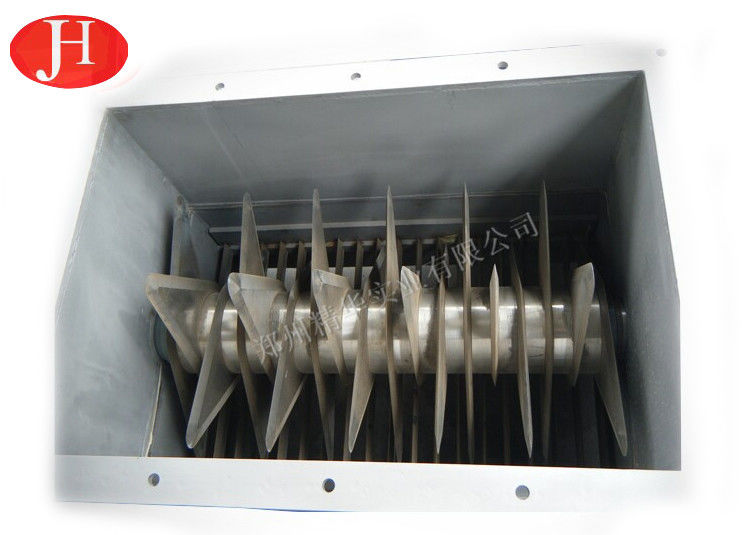

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.
Main technical parameters
| Model |
Diameter of rotor (mm) |
Speed of rotor (r/min) |
Blade Number |
Rotor length (mm) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
Capacity (t/h) |
| DPS5050 | Φ480 | 1200 | 9 | 550 | 7.5/11 | 1030x1250x665 | 650 | 10-15 |
| DPS5076 | Φ480 | 1200 | 11 | 760 | 11/15 | 1250x1300x600 | 750 | 15-30 |
| DPS50100 | Φ480 | 1200 | 15 | 1000 | 18.5/22 | 1530x1250x665 | 900 | 30-50 |
| DPS60100 | Φ580 | 1200 | 15 | 1000 | 30/37 | 1530x1400x765 | 1100 | 60-80 |
2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
3.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
