4Kw Vacuum Filter 10t/H Sweet Potato Starch milk dehydration Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | KLG12 KLG20 KLG24 KLG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Vacuum Filter | Line: | Sweet Potato Starch Production Line |
|---|---|---|---|
| Useful Life: | 20 Years | Capacity: | 4-10 T/h |
| Service: | Overseas Installation | Training: | Yes |
| Warranty: | 1 Year | Condition: | New |
| Highlight: | 10t/H Sweet Potato Starch Machine,4Kw Sweet Potato Starch Machine |
||
Product Description
4 Kw Sweet Potato Starch Machine Vacuum Filter Starch Milk Dehydrator Equipment

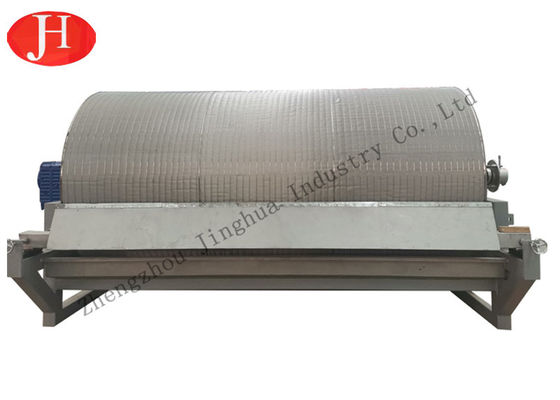

1. Description of vacuum filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Advantage of vacuum filter
1. Combining the latest technologoy and years experience into a whole.
2. Fully stainless steel for parts contacting with material,compact structure and nice design
3. Speed ofrotating dum can be adjusted acordig to actual site.
4. Material umloaded through blade, which is made of high rigid aly and can be adjusted.
5. Stimer's rumning frequency can be adjusted.
6. Continuous adjusting for fhuid-level control.
7. Low energy consumption,small areafindly operation and stable running.
8. Widely used for dewatering of suspension in starch processing.
Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Main technical parameters
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |
2. Our Service
1. After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;
2. After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.
3. After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.
3. Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
4. FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
