Slurry Centrifugal Sieve 15T/H 30Kw Wheat Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DLS85 DLS100 DLS120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Product Name: | Centrifuge Sieve | Useful Life: | 20 Years |
|---|---|---|---|
| Capacity: | 15 T/h | Power: | 30 Kw |
| Dimension: | 1200*2111*1763 Mm | Weight: | 1800 Kg |
| Installation: | Yes | Maintain: | Yes |
| High Light: | 30Kw Wheat Starch Machine,15T/H Wheat Starch Machine,Slurry Centrifugal Sieve |
||
Product Description
Wheat Starch Making Machine Centrifugal Sieve Starch Slurry Fifber Separator Equipment

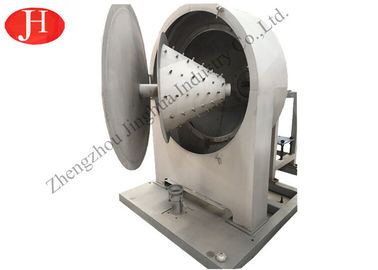

1.Description of centrifuge sieve
Centrifugal Sieve is used to separate the fine fiber from the starch slurry,under the action of gravity and centrifugal force, the pulp along the sieve surface to do circular motion. Reasonably use the process water, clean water and the sieve to maximally separate the starch out of pulp.
Working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.
Main technical parameters
| Model | Basket diameter(mm) | Main shaft speed(r/min) | Working model |
Power (Kw) |
Dimension (mm) |
Weight (t) |
| DLS85 | 850 | 1050 | continuous | 18.5/22/30 | 1200x2111x1763 | 1.5 |
| DLS100 | 1000 | 1050 | continuous | 22/30/37 | 1440x2260x1983 | 1.8 |
| DLS120 | 1200 | 960 | continuous | 30/37/45 | 1640x2490x2222 | 2.2 |
2.Our Service
1.After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;
2.After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.
3.After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.
3.Company Information
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
Our Factory
Our Workshop
