SS Gluten Washing Drum Sieve 20 T/H Wheat Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GTS12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Product Name: | Gluten Washing Drum Sieve | Line: | Wheat Starch Production Line |
|---|---|---|---|
| Dimension: | 5100*1620*2400 Mm | Useful Life: | 20 Years |
| Power: | 3 Kw | Material: | Stainless Steel |
| Customized: | Customized | Installation: | Yes |
| High Light: | 20 T/H Wheat Starch Machine,3Kw Wheat Starch Machine,SS Gluten Washing Drum Sieve |
||
Product Description

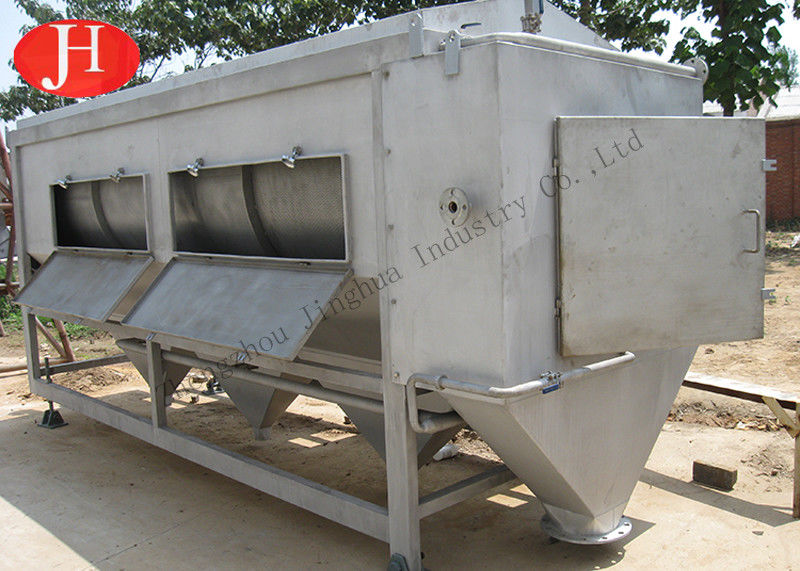

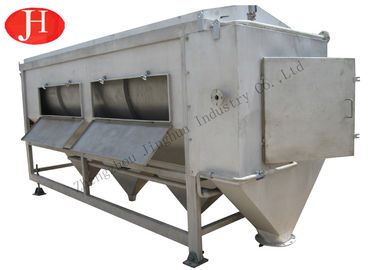

Wheat Starch Machine 20 T/H Stainless Steel Gluten Washing Drum Sieve
1.Description of gluten washing drum sieve
Application
In wheat starch production line, B starch and active protein separated in 3-phase horizontal screw centrifuge is sent to wash in gluten washing drum sieve. In general, washed gluten after 2 or 3 tandem washing is sent to dehydration then.
Advantages of gluten washing drum sieve:
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution and increases service life of machine.
2. Large capacity, excellent screening performance, easily installed.
3. Low revolving speed, low energy consumption and great operation safety.
4. This is an perfect machine for large scale wheat starch production line.
Main technical parameters
| Item | Parameters |
| Model of Main Engine | GTS12 |
| Main Power | 3 kW |
| Diameter of Rotary Drum | 1200 mm |
| Length of Rotary Drum | 4200 mm |
| Revolving Speed of Rotary Speed | 6 rpm |
| Flash Water Pressure | 0.3-0.5 MPa |
| Capacity | 20 ton/hr |
| Boundary Dimension(mm) | 5100*1620*2400 |
2.Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
Our Factory
Our Workshop
3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
