SS Pressure Arc Sieve 80㎥/H Corn Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | QS-585 QS-710 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Pressure Arc Sieve | Condition: | New |
|---|---|---|---|
| Useful Life: | 20 Years | Energy: | Electric |
| Machine: | Corn Starch Slurry Separator Machine | Application: | Maize Starch Production Line |
| Service: | Overseas Installation | ||
| High Light: | 80㎥/H Corn Starch Making Machine,0.4Mpa Corn Starch Making Machine,SS Pressure Arc Sieve |
||
Product Description
Stainless Steel Customized Pressure Arc Sieve Corn Starch Making Machine
1.Description of pressure arc sieve
The pressure curved screen is mainly used in the starch processing process , adopt the multi-stage counter-current washing method to screening, dehydration and extraction, solid and impurity removal from the starch
Main technical parameters
1.It is widely used in corn starch processing plant.The equipment enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.
2.Pressure arc sieve is highly efficient fine sieve under certain pressure, applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.

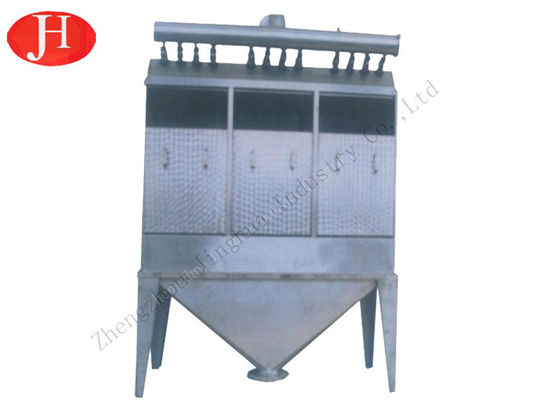

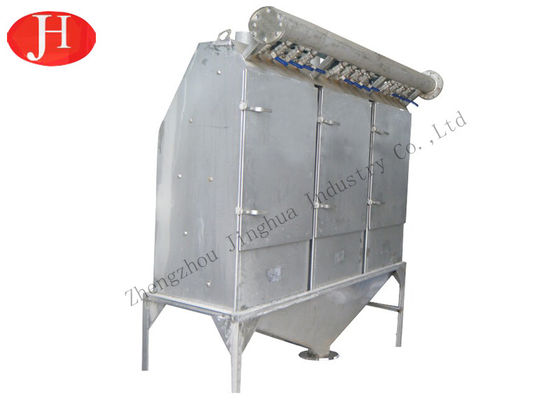

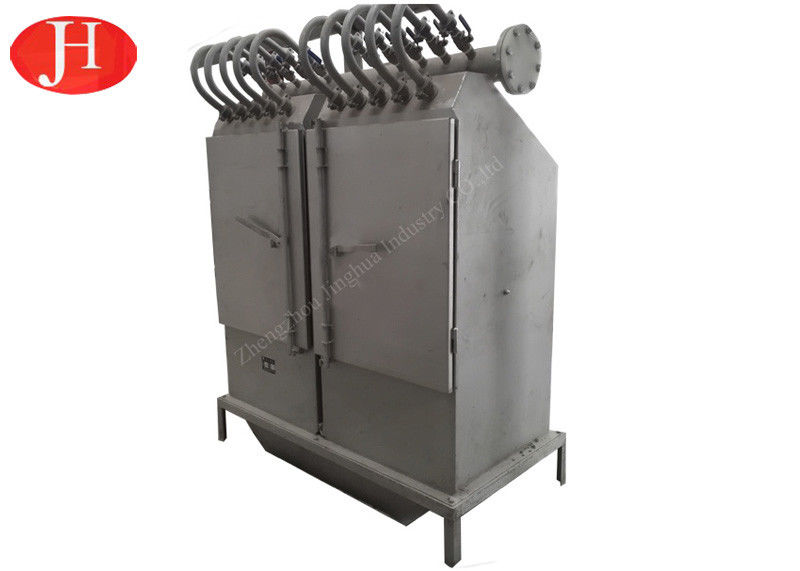

Product show
Main technical parameters
| Model |
Sieve radian (mm) |
Width of sieve seam (micron) |
Capacity (㎥/h) |
Feed pressure (Mpa) |
Sieve width (mm) |
| QS-585 | 1200 | 50,75,100,120 | 34-46 | 0.2-0.4 | 585 |
| QS-585×2 | 1200 | 50,75,100,120 | 70-100 | 0.2-0.4 | 585×2 |
| QS-585×3 | 1200 | 50,75,100,120 | 110-140 | 0.2-0.4 | 585×2 |
| QS-710 | 1200 | 50,75,100,120 | 60-80 | 0.2-0.4 | 710 |
| QS-710×2 | 1200 | 50,75,100,120 | 120-150 | 0.2-0.4 | 710×2 |
| QS-710×3 | 1200 | 50,75,100,120 | 180-220 | 0.2-0.4 | 710×2 |
The working principle of pressure arc sieve
Slurry from the nozzle to a certain speed (15 to 25 m/s) by the sieve surface tangent into the concave surface, the high feed speed make the material on the screen by centrifugal force, gravity and screen the role of resistance for the material, material by one screen to another screen of process, the bar is a sharp blade material cutting action, the starch in the material and a lot of water through a sieve seam become undersize, while fiber fine slag flowed from the sieve surface end and be on the screen.
2.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
