1520kg Double Bin 2.2Kw 10t/H Starch Processing Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDS4*10*83 GDS2*10*83 GDS1*10*83 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Half Closed Starch Sifter | Energy: | Electric |
|---|---|---|---|
| Power: | 2.2 Kw | Weight: | 1520 Kg |
| Capacity: | 2-10 T/h | Condition: | New |
| Dimension: | 2600*1650*2220 Mm | Service: | Overseas Installation |
| High Light: | 2.2Kw Starch Processing Machine,10t/H Starch Processing Machine,Half Closed Starch Sifter |
||
Product Description
Sweet Potato Starch Sifter Machine Double Bin Half Closed Starch Grading Equipment
1.Description of starch sifter
MFDC check sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed. Machine can also be used for corn, feed and rice industries.It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.
Advantages of starch sifter
1. Long sieving road;Small occupying space.
2. High efficiency and large capacity.
3. Energy saving and stable operation;Easy maintenance.
4. Shifter screen is varied 40-120 mesh according to different material.
5. Shifter screen material is stainless steel.
6. Shifter frame can be made of carbon steel or stainless steel.

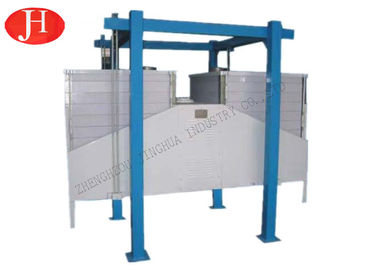

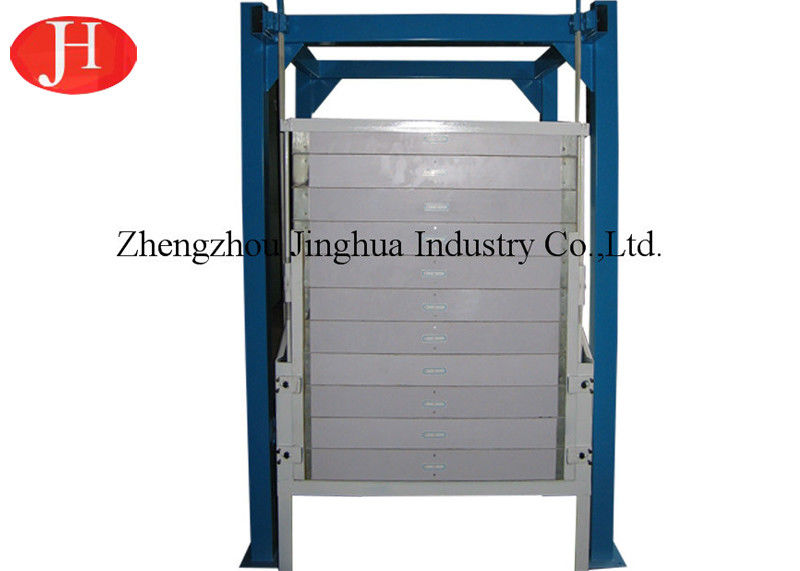

Product show
Main technical parameters
| Model |
Bin (piece) |
Sifter area (㎡) |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
Dimension (mm) |
| GDS4*10*83 | 4 | 18 | 10～11 | 2.2 | 1520 | 2310×2200×2400 |
| GDS2*10*100 | 2 | 10 | 6～8 | 1.5 | 900 | 2600×1650×2220 |
| GDS2*10*83 | 2 | 8.5 | 5～6 | 1.5 | 850 | 2120×1400×2220 |
| GDS1*10*100 | 1 | 6.6 | 3～4 | 1.1 | 750 | 1610×1610×1800 |
| GDS1*10*83 | 1 | 4.2 | 2.5～3 | 0.75 | 600 | 1400×1400×1800 |
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
2.Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.
Our Factory
Our Workshop
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
