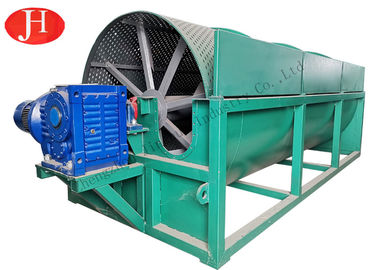

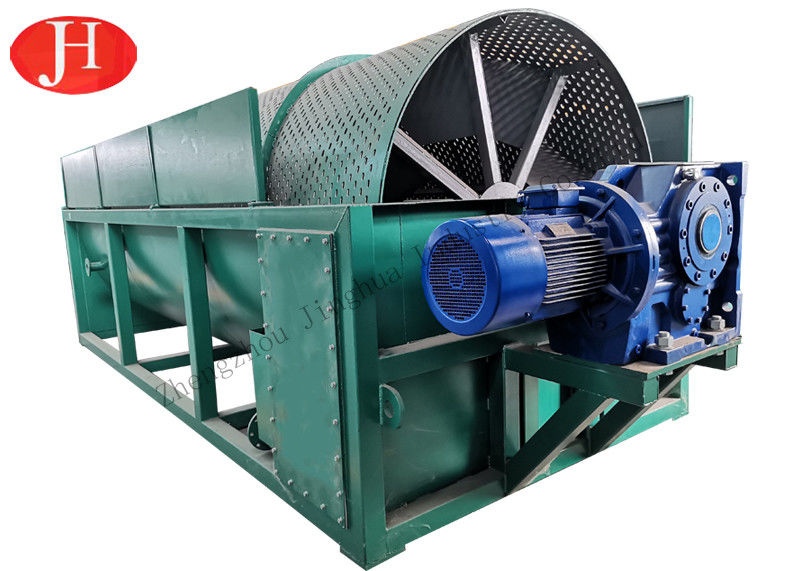

Rotary Cleaning 1905mm 22Kw Sweet Potato Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DQXJ190x450 DQXJ190x490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Rotary Cleaning Machine | Energy: | Electric |
|---|---|---|---|
| Condition: | New | Dimension: | 6110*2340*2170 Mm |
| Weight: | 6000 Kg | Drum Diameter: | 1905mm |
| Power: | 22Kw | Service: | Overseas Installation |
| Useful Life: | 20 Years | ||
| High Light: | 22Kw Sweet Potato Starch Machine,1905mm Sweet Potato Starch Machine,Potato Starch Rotary Cleaning Machine |
||
Product Description
Sweet Potato Starch Making Cleaing Machine 22 Kw New Condition Rotary Washer
1.Description of sweet potato cleaning machine
Rotary drum washer is applied to wash potatoes, cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.
Advantages of rotary cleaning machine
1. Combining the latest technology and years’ experience into a whole.
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving.
5. Stable operation and rational motor equipped.
Main technical parameters
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity (t/h) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |
Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
2.Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
