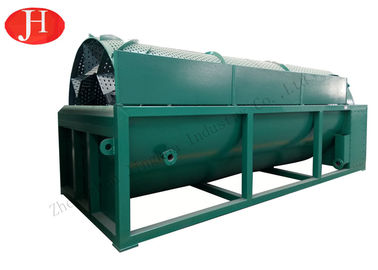

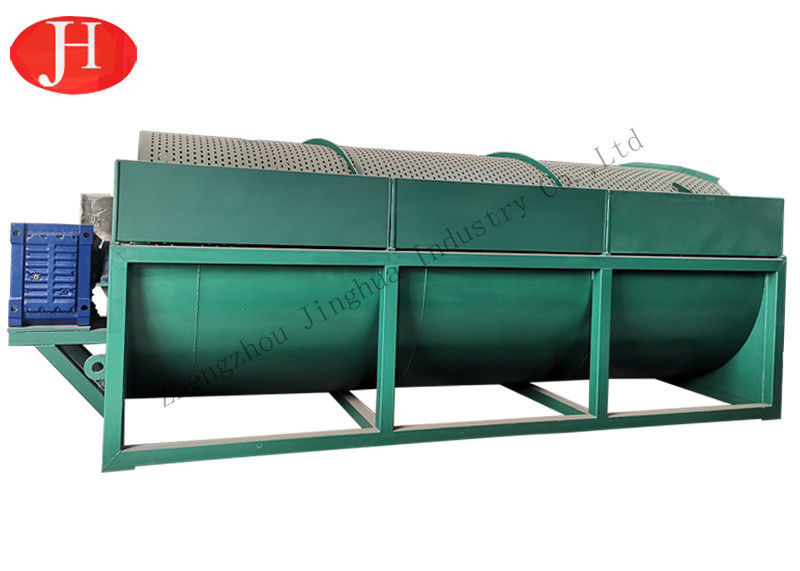

Rotary Washing 22Kw Ss Sweet Potato Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DQXJ190x450 DQXJ190x490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Rotary Washing Machine | Service: | Overseas Installation |
|---|---|---|---|
| Dimension: | 5930*2290*2170 Mm | Drum Length: | 4520mm |
| Customized: | Customized | Power: | 22Kw |
| Material: | Stainless Steel | Voltage: | 220V Or 380V |
| High Light: | SS Sweet Potato Starch Machine,Rotary Washing Potato Starch Machine,22Kw Sweet Potato Starch Machine |
||
Product Description
New Condition Rotary Cleaning Machine Sweet Potato Starch Washing Processing Line
Introduction of sweet potato washing machine
Rotary drum washer is applied to wash potatoes, cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.
Main technical parameters
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity (t/h) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |
Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Advantages of rotary washing machine
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving.
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
