Pressure Arc Sieve 15t/H Corn Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | QS-585 QS-710 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Pressure Arc Sieve | Useful Life: | 20 Years |
|---|---|---|---|
| Customized: | Customized | Service: | Overseas Installation |
| Capacity: | 15 T/h | Advantage: | High Effective |
| Material: | Stainless Steel | Sieve Radian: | 1200 |
| Highlight: | 15t/H Corn Starch Making Machine,SS Corn Starch Making Machine,Corn Starch Slurry Dehydrator |
||
Product Description
High Quality Pressure Arc Sieve Corn Starch Slurry Dehydrator Making Machine

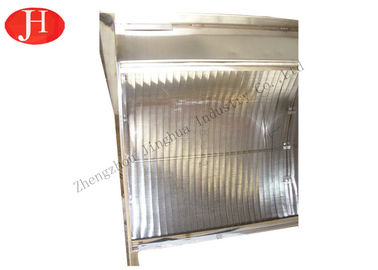

Introduction of pressure arc sieve
Pressure arc sieve is highly efficient fine sieve under certain pressure, applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.
It is widely used in corn starch processing plant.The equipment enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.
Main technical parameters
| Model | Sieve radian | Width of sieve seam(micron) | Capacity(㎥/h) | Feed pressure(Mpa) | Sieve width(mm) |
| QS-585 | 1200 | 50,75,100,120 | 34-46 | 0.2-0.4 | 585 |

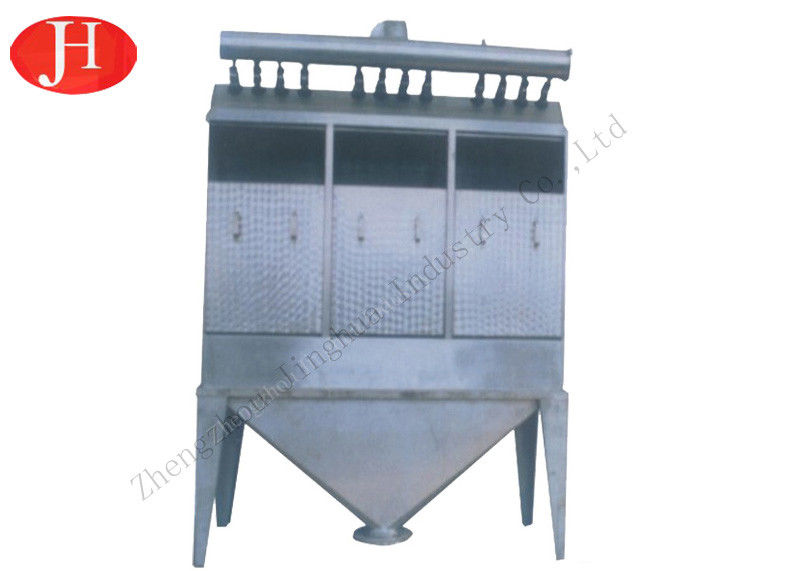

| QS-585×2 | 1200 | 50,75,100,120 | 70-100 | 0.2-0.4 | 585×2 |
| QS-585×3 | 1200 | 50,75,100,120 | 110-140 | 0.2-0.4 | 585×2 |
| QS-710 | 1200 | 50,75,100,120 | 60-80 | 0.2-0.4 | 710 |
| QS-710×2 | 1200 | 50,75,100,120 | 120-150 | 0.2-0.4 | 710×2 |
| QS-710×3 | 1200 | 50,75,100,120 | 180-220 | 0.2-0.4 | 710×2 |
Working principle
Slurry from the nozzle to a certain speed (15 to 25 m/S) by the sieve surface tangent into the concave surface, the high feed speed make the material on the screen by centrifugal force, gravity and screen the role of resistance for the material, material by one screen to another screen of process, the bar is a sharp blade material cutting action, the starch in the material and a lot of water through a sieve seam become undersize, while fiber fine slag flowed from the sieve surface end and be on the screen.
Real application case
Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
