Gravity Arc Sieve 15t/H SS Corn Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | QP60 QP100 QP150 QP180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Gravity Arc Sieve | Material: | Stainless Steel |
|---|---|---|---|
| Customized: | Customized | Useful Life: | 20 Years |
| Advantage: | Good Effective | Service: | Overseas Installation |
| Capacity: | 15 T/h | Warranty: | 12 Months |
| Highlight: | SS Corn Starch Making Machine,15t/H Corn Starch Making Machine,Corn Starch Fiber Flour Separator |
||
Product Description
Corn Starch Making Machine Gravity Arc Sieve Starch Fiber Flour Separator Equipment

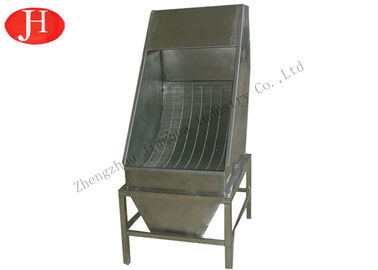

Introduction of gravity arc sieve
Gravity arc sieve is highly efficient fine sieve which is used in washing germ or corn.It is widely used in corn starch processing plant.
Gravity arc sieve is a static and efficient screening equipment. It separates and classifies wet materials by pressure.
The working principle of gravity arc sieve

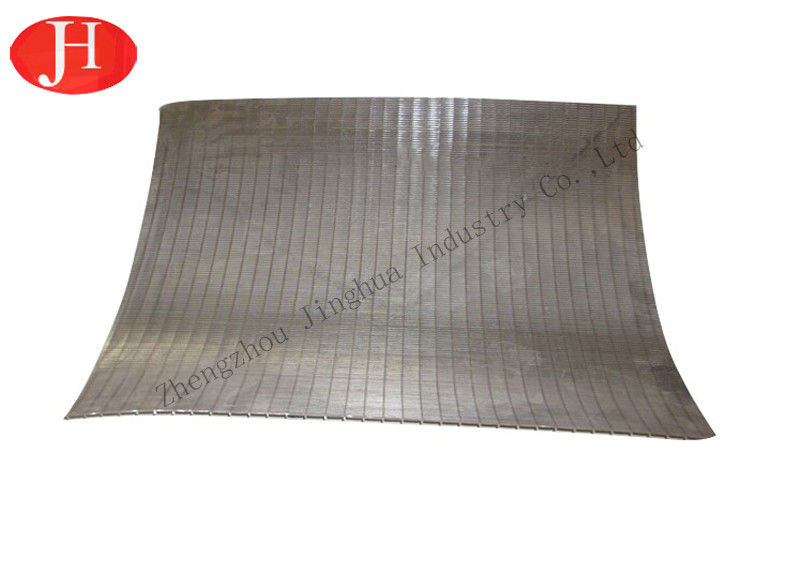

Slurry from the nozzle to a certain speed (15 to 25 m/S) by the sieve surface tangent into the concave surface, the high feed speed make the material on the screen by centrifugal force, gravity and screen the role of resistance for the material, material by one screen to another screen of process, the bar is a sharp blade material cutting action, the starch in the material and a lot of water through a sieve seam become undersize, while fiber fine slag flowed from the sieve surface end and be on the screen.
Main technical parameters
| Model | Width(mm) | Area(m3) | Texture |
| QP60 | 600 | 0.48 | Stainless Steel |
| QP80 | 800 | 0.54 | Stainless Steel |
| QP100 | 1000 | 0.8 | Stainless Steel |
| QP120 | 1200 | 0.96 | Stainless Steel |
| QP150 | 1500 | 1.2 | Stainless Steel |
| QP180 | 1800 | 1.44 | Stainless Steel |
Real application case
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How loong is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
