15t/H Hydro Cyclone Cassava Starch Milk Dehydrator
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | XL325 XL438 XL516 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Hydro Cyclone | Energy: | Electric |
|---|---|---|---|
| Application: | Starch Milk Dehydration Machine | Service: | Overseas Installation |
| Capacity: | 3-15 T/h | Power: | 45 Kw |
| Condition: | New | Advantage: | High Effective |
| Highlight: | Cassava Starch Milk Dehydrator,15t/H Starch Milk Dehydrator,Hydrocyclone Cassava Starch Processing Equipment |
||
Product Description

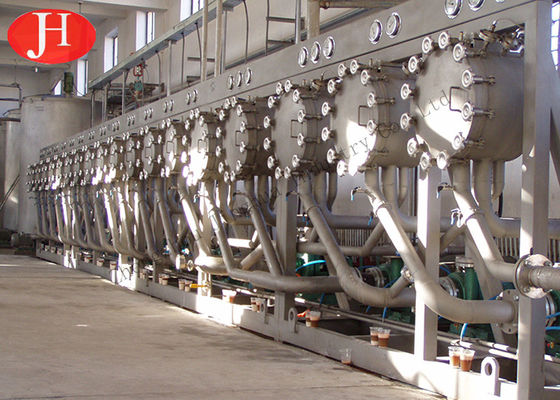

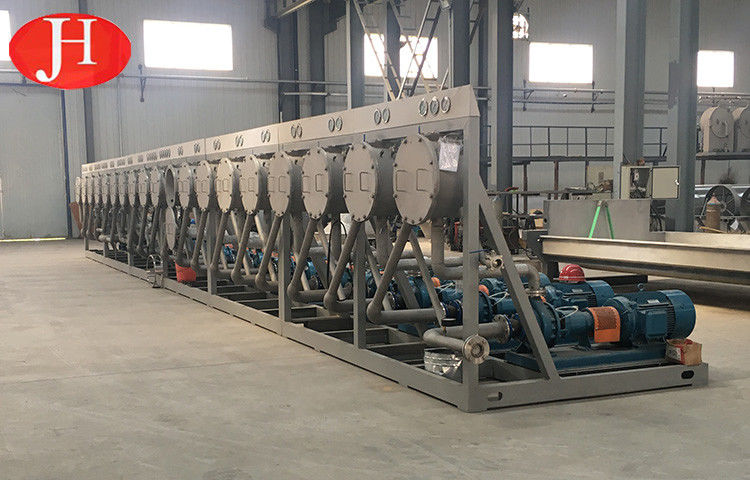

China Factory Hydro Cyclone Cassava Starch Milk Dehydrator Processing Equipment
Introduction of hydro cyclone
Zhengzhou jinghua starch hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc. Widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch, and modified starch.
Main technical parameters
| Model | XL325 | XL438 | XL516 | XLS426 | |
| Plate quantity | 1 | 1 | 1 | 2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
| Cylinder diameter(mm) | 362 | 438 | 516 | 426 | |
| Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 | |
| Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Inlet Size(mm) | 76 | 89 | 89 | 2* 89 | |
| Underflow Size(mm) | 48 | 48 | 57 | 76 | |
| Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Working principle
The starch slurry pumped into the middle of the hydro cyclone cylinder through the feed port at high pressure. When the pressure reaches 0.5~ 0.7MPa, the starch slurry enters the cyclone tube inlet and along the tangent direction of the cyclone tube. The material in the cyclone tube rotates according to the spiral line. Because of the high density, starch obtains larger centrifugal force, which is thrown to the inner wall of the cone and discharged at the underflow outlet. The protein and water line go up to the overflow outlet. In this way, the hydro cyclone station can achieve the purpose of starch slurry separation, concentration, refining.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
