1200r/Min 480mm Rotor 50t/H Cassava Grinder Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DPS5050 DPS5076 DPS50100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Stainless Steel Crusher | Diameter Of Rotor: | 480 Mm |
|---|---|---|---|
| Speed Of Rotor: | 1200 R/min | Condition: | New |
| Useful Life: | 20 Years | Capacity: | 10-50t/h |
| Advantage: | Large Capacity | Service: | Overseas Installation |
| Highlight: | 50t/H Cassava Grinder Machine,480mm Rotor Cassava Grinder Machine,Cassava Starch Grinder Machine |
||
Product Description
High Effective Crusher Cassava Starch Grinder Mill Processing Equipment
Introduction of cassava grinder machine
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.
Main technical parameters
| Model |
Blade Number (piece) |
Rotor length (mm) |
Power (Kw) |
Dimension (mm) |
Weight (kg) |
Capacity (t/h) |
|
| DPS5050 | 9 | 550 | 7.5/11 | 1030x1250x665 | 650 | 10-15 |
Diameter of rotor:Φ480mm Speed of rotor:1200r/min |
| DPS5076 | 11 | 760 | 11/15 | 1250x1300x600 | 750 | 15-30 | |
| DPS50100 | 15 | 1000 | 18.5/22 | 1530x1250x665 | 900 | 30-50 | |
| DPS60100 | 15 | 1000 | 30/37 | 1530x1400x765 | 1100 | 60-80 |

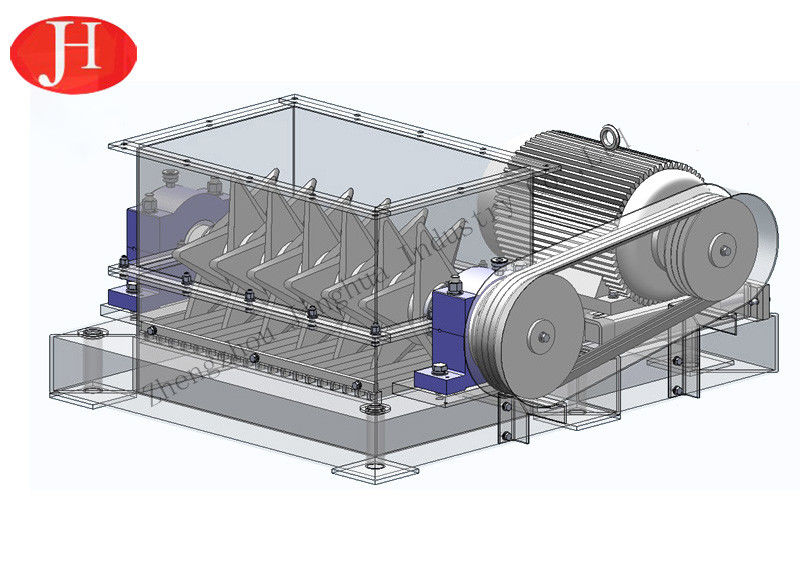

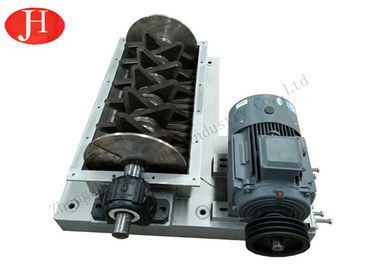

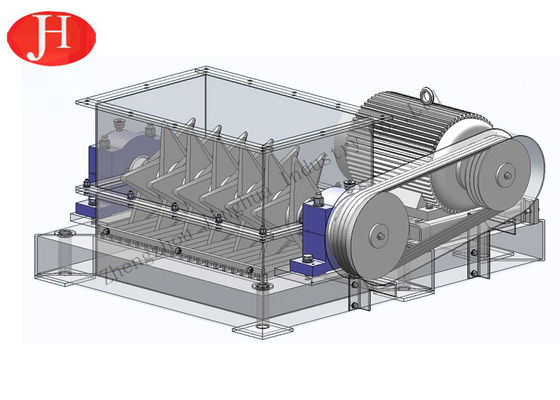

Working principle of crusher
The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.
