Stainless Steel 12t/H Cassava Starch Milk Dehydrator
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | XL325 XL438 XL516 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Hydrocyclone | Material: | Stainless Steel |
|---|---|---|---|
| Energy: | Electric | Weight: | 1200 Kg |
| Service: | Overseas Installation | Advantage: | Good Effect |
| Warranty: | 1 Years | Application: | Starch Milk Dehydration Machine |
| Highlight: | Cassava Starch Milk Dehydrator,SS Starch Milk Dehydrator,Hydrocyclone Cassava Starch Making Machine |
||
Product Description

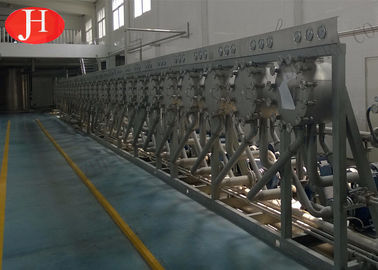

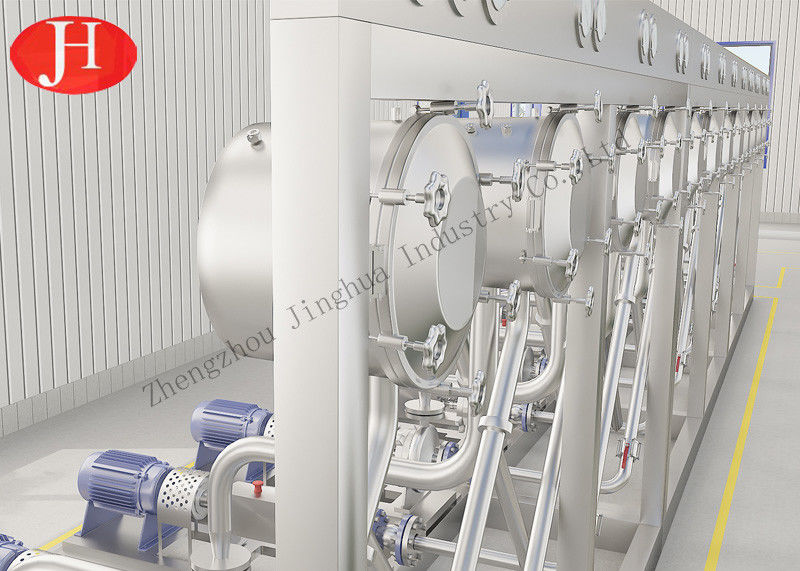

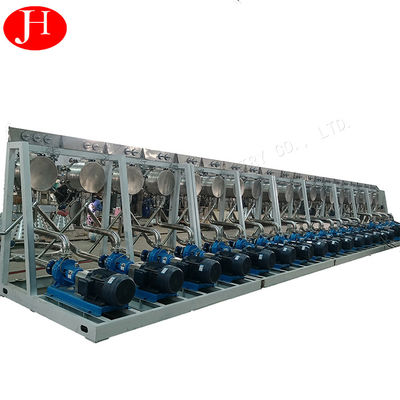

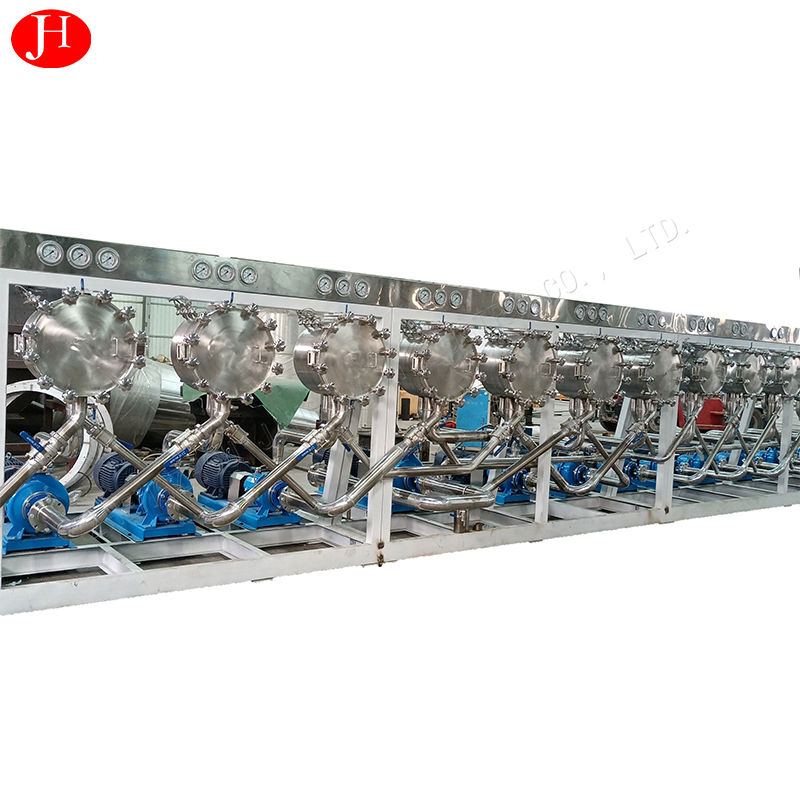

Cassava Starch Milk Dehydrator Processing Equipment 45 Kw Hydro Cyclone
Introduction of cassava starch making machine
Hydrocyclone widely used in large and medium-sized starch production enterprises, can be used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.
Main technical parameters
| Model | XL325 | XL438 | XL516 | XLS426 | |
| Plate quantity | 1 | 1 | 1 | 2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
| Cylinder diameter(mm) | 362 | 438 | 516 | 426 | |
| Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 | |
| Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Inlet Size(mm) | 76 | 89 | 89 | 2* 89 | |
| Underflow Size(mm) | 48 | 48 | 57 | 76 | |
| Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Advantages of hydrocyclone separator
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
