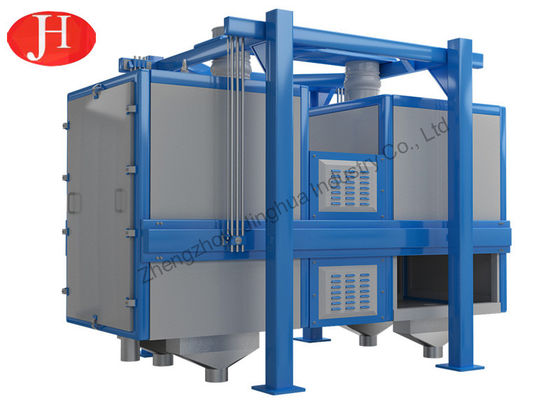

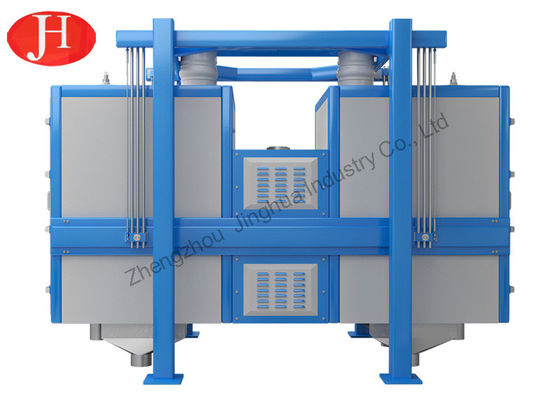

4 Bin 2.2Kw Final Check Sifter Wheat Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDSF2*10*100 GDSF2*10*83 GDSF1*10*83 GDSF1*10*100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5 sets/month |
|
Detail Information |
|||
| Product Name: | Wheat Starch Sifter | Condition: | New |
|---|---|---|---|
| Dimension: | 2310*2200*2400 Mm | Weight: | 1520 Kg |
| Power: | 2.2 Kw | Application: | Wheat Starch Processing Machine |
| Capacity: | 4-11 T/h | Service: | Overseas Installation |
| Highlight: | Wheat Starch Sifter,4 Bin Wheat Starch Machine,11T/H Wheat Starch Machine |
||
Product Description
Electric 4 Bin Starch Final Check Sifter 1520 Kg Wheat Starch Processing Machine
1.Description of wheat starch sifter machine
MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed.This machine can help you reduce energy cost and more effective.
Main technical parameters
| Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Application scenarios
Advantages of full closed starch sifter
1. Enclosed mild steel box cabinet for great flexibility of flow due to additional outer (4) channels.
2. Machine can be supplied with a range of sieve stacks from 8-12 frames.
3. Simple design allows easy maintenance.
4. Machine has good flexibility as sieve frames can be supplied as 860/1000/1200 mm to cater for various capacity requirements.
5. Machine can be suspended within its own machine frame or it can hung from a onsite steel support structure
2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
