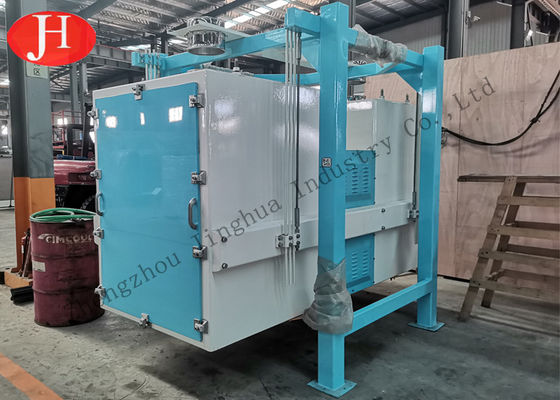

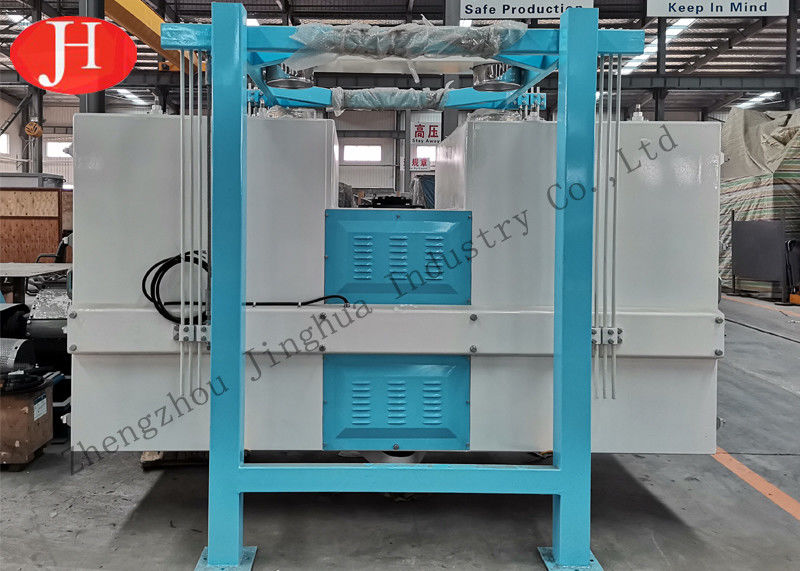

Full Closed Four Bin Cassava Starch Sifter Equipment
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDSF2*10*100 GDSF2*10*83 GDSF1*10*83 GDSF1*10*100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Customized Cassava Starch Sifter Equipment Electric Full Closed Four Bin Check Sifter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Full Closed Starch Sifter | Useful Life: | 20 Years |
|---|---|---|---|
| Application: | Cassava Starch Sifter Machine | Power: | 2.2 Kw |
| Dimension: | 2530*1717*2270 Mm | Weight: | 1500 Kg |
| Condition: | New | Line: | Cassava Starch Production Line |
| Highlight: | Cassava Starch Sifter Equipment,Full Closed Cassava Starch Machine,Four Bin Cassava Starch Machine |
||
Product Description
Customized Cassava Starch Sifter Equipment Electric Full Closed Four Bin Check Sifter
Description of cassava starch sifter
MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed.
Advantages of full clsoed starch sifter
1. Enclosed mild steel box cabinet for great flexibility of flow due to additional outer (4) channels.
2. Machine can be supplied with a range of sieve stacks from 8-12 frames.
3. Simple design allows easy maintenance.
4. Alum (aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
5. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
6. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
7. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.
8. Easy and quick changing of sifting scheme if necessary.
Main technical parameters
| Model | Bin (Piece) | Number of sieves (piece) | Capacity (t/h) | Diameter (mm) | Power (Kw) | Weight (kg) | Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
