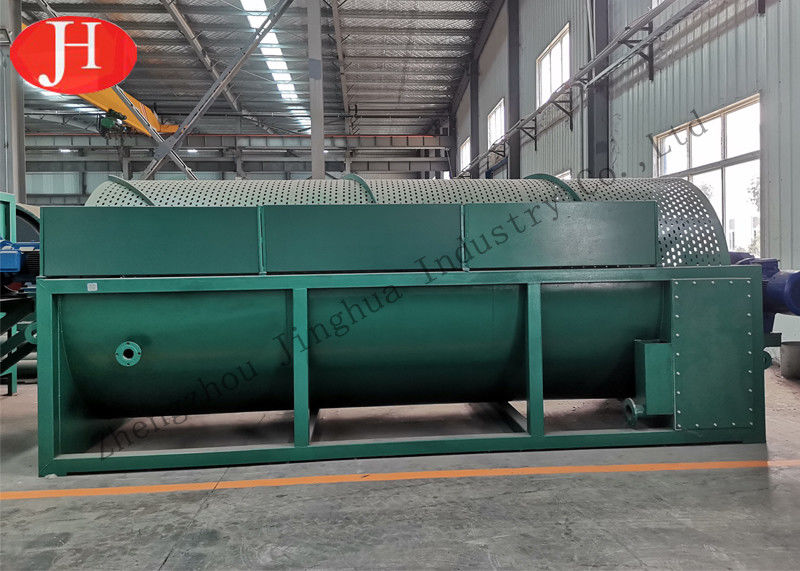

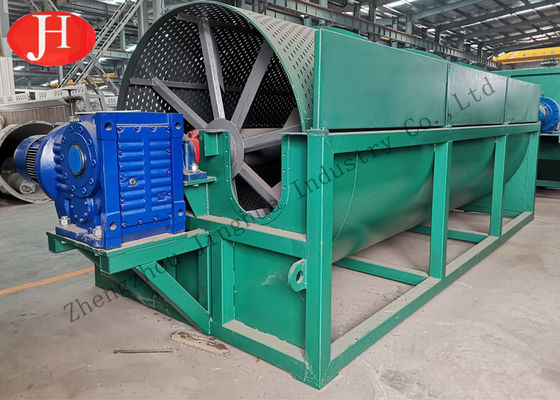

30Kw 50t/H Rotary Washer Sweet Potato Starch Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DQXJ190x450 DQXJ190x490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Rotary Washing Machine | Service: | Overseas Installation |
|---|---|---|---|
| Energy: | Electric | Useful Life: | 20 Years |
| Dimension: | 5930*2290*2170 Mm | Capacity: | 20-50 T/h |
| Condition: | New | Power: | 30 Kw |
| Highlight: | Potato Starch Rotary Washer,50t/H Sweet Potato Starch Machine,30Kw Sweet Potato Starch Machine |
||
Product Description
Easy Operate Sweet Potato Starch Cleaning Making Machine 30 Kw Rotary Washer
Description of sweet potato cleaning machine
Rotary drum washer is applied to wash potatoes, cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.
Advantages of rotary washer
1. Combining the latest technology and years’ experience into a whole
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving
5. Stable operation and rational motor equipped.
6. The rotating drum is made of high quality shell perforated with numerical control punch for long time.
7. Easy to installation and maintenance
Main technical parameters
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity (t/h) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |
Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Real application case
Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
