Starch Slurry 37Kw 4t/H Potato Dehydrator Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DLS85 DLS100 DLS120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Centrifuge Sieve | Application: | Starch Slurry Fiber Separator Machine |
|---|---|---|---|
| Useful Life: | 20 Years | Customized: | Customized |
| Dimension: | 1440*2260*1983 Mm | Power: | 37 Kw |
| Capacity: | 4-2 T/h | Weight: | 1800 Kg |
| Highlight: | 4t/H Potato Dehydrator Machine,Potato Starch Centrifuge Sieve,Starch Slurry Fiber Separator Machine |
||
Product Description

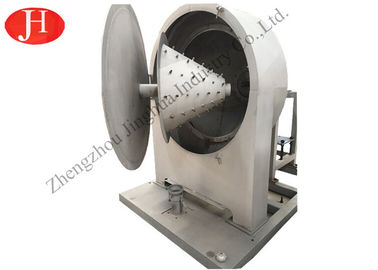

Sweet Potato Starch Slurry Fiber Separator Dehydrator Machine Centrifuge Sieve
Description of centrifuge sieve
Centrifugal sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.
Advantages of centrifuge sieve
1. Combining the latest technology and years’ experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for centrifugal sieve group, CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensuring the good appearance and resistance of oil and dirt.
8. Nozzles tested by strict examination in pressure and flow rate.
9. Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.
Main technical parameters
|
Model
|
Basket diameter(mm) | Main shaft speed(r/min) | Working model |
Power (Kw) |
Dimension (mm) |
Weight (t) |
| DLS85 | 850 | 1050 | continuous | 18.5/22/30 | 1200x2111x1763 | 1.5 |
| DLS100 | 1000 | 1050 | continuous | 22/30/37 | 1440x2260x1983 | 1.8 |
| DLS120 | 1200 | 960 | continuous | 30/37/45 | 1640x2490x2222 | 2.2 |
The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.
