45t/H Cassava Making Machine Cassava Grinder Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5 sets/month |
|
Detail Information |
|||
| Product Name: | High Effect Rasper | Application: | Cassava Grinder Equipment |
|---|---|---|---|
| Line: | Cassava Starch Production Line | Dimension: | 2170*1650*1380 Mm |
| Service: | Overseas Installation | Capacity: | 10-45 T/h |
| Power: | 200 Kw | ||
| Highlight: | Pounding Cassava Grinder Machine,Garri Making Cassava Grinder Machine,45t/H Cassava Grinder Machine |
||
Product Description

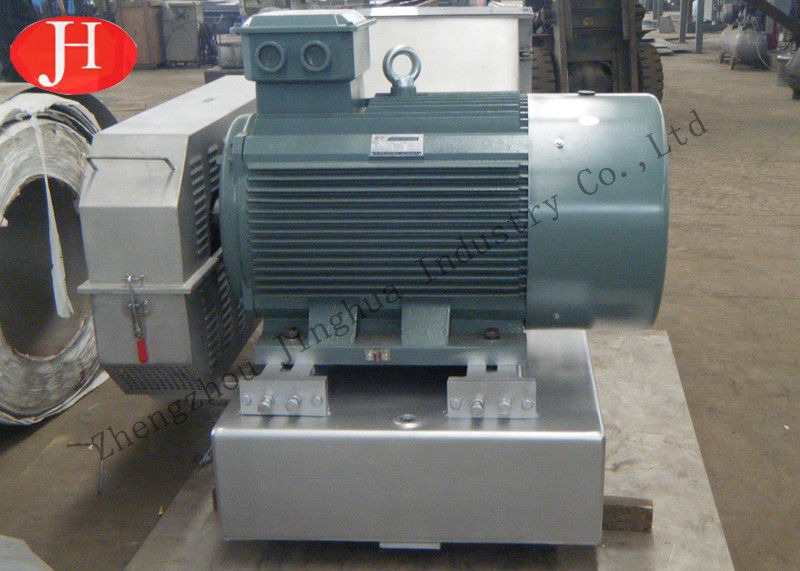

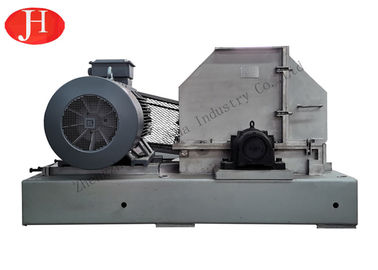

Cassava Processing Equipment High Effect Cassava Grinder Pounding Machine Rasper
Description of cassava grinder machine
Cassava is not easy to destroy, the second file grinding machine file grinding, the root of the root repeatedly file grinding, small starch particles can be successfully disintegrated and separated, improve the rate of starch extraction. Widely used in sweet potato, potato,canna, konjac and other starch production enterprises.
Main technical parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width (mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity (t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension (mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Advantages of rasper
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Engine base props up all components, which rotor and bearings are all fixed on.
5. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
6. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
