2100r/Min Ss Rasper Sweet Potato Starch Machine 45t/H
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5 sets/month |
|
Detail Information |
|||
| Product Name: | New Condition Rasper | Energy: | Electric |
|---|---|---|---|
| Customized: | Customized | Machine: | Sweet Potato Grinder Machine |
| Capacity: | 20-45 T/h | Main Shaft Rotating Speed: | 2100 R/min |
| Warranty: | 1 Year | ||
| Highlight: | Ss Rasper Potato Starch Machine,2100r/Min Sweet Potato Starch Machine,45t/H Sweet Potato Starch Machine |
||
Product Description
good quality sweet potato starch grinder mill making machine Ss rasper supplier

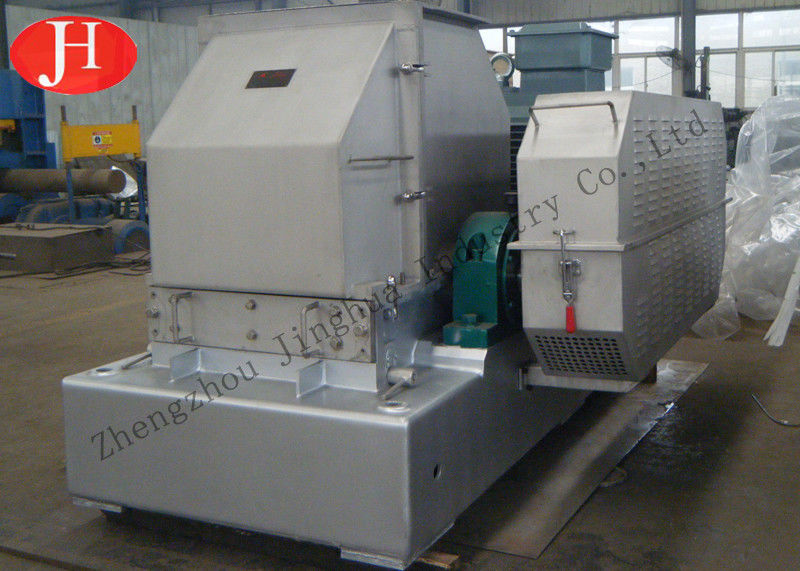

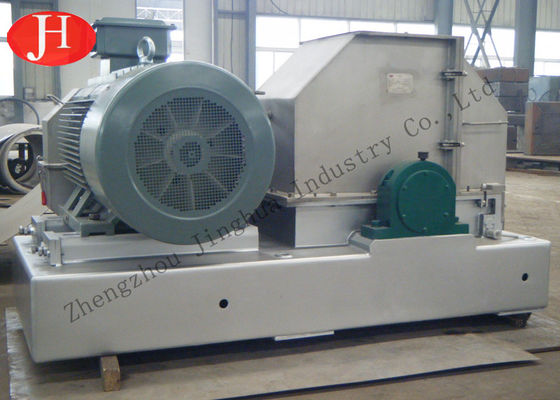

Description of sweet potato grinder machine
Rasper is our company's high-tech products and patented technology products.The rasper breaks the raw material at a high speed, destroys the fiber structure and makes the starch particles free.Widely used in potato starch and cassava starch processing to crash and rasp raw materials.
Main technical parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width (mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity (t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Structure introduction
Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.
2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. Combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
