Vacuum Filter Sweet Potato Starch Milk Dehydrator
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | KLG12 KLG20 KLG24 KLG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 5 sets/month |
|
Detail Information |
|||
| Product Name: | Vacuum Filter | Energy: | Electric |
|---|---|---|---|
| Dimension: | 4775*2312*2213 Mm | Weight: | 4000 Kg |
| Capacity: | 4-15 T/h | Machine: | Sweet Potato Starch Milk Dehydrator Plant |
| Application: | Sweet Potato Starch Milk Water Filter Machine | Service: | Overseas Installation |
| Highlight: | Sweet Potato Starch Milk Dehydrator,Vacuum Filter Milk Dehydrator,Rotary Drum Milk Dehydrator |
||
Product Description
automatic sweet potato starch milk dehydrator water filter machine vacuum filter

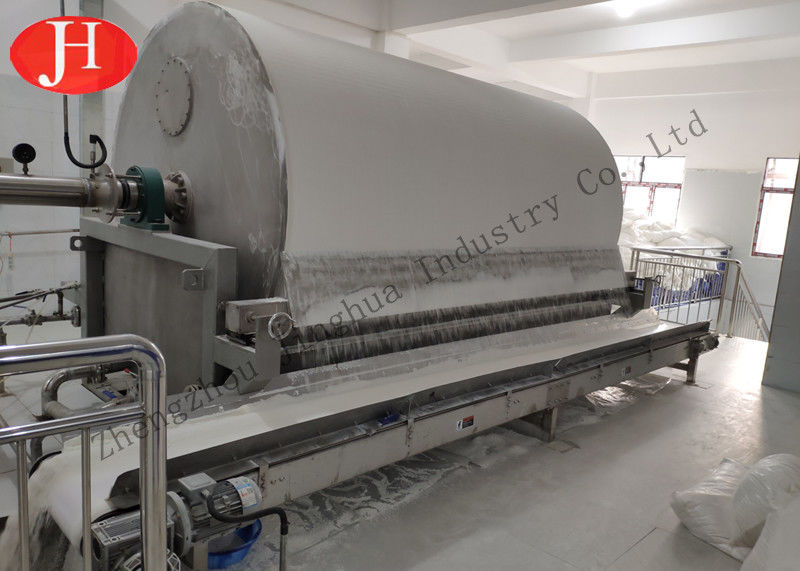

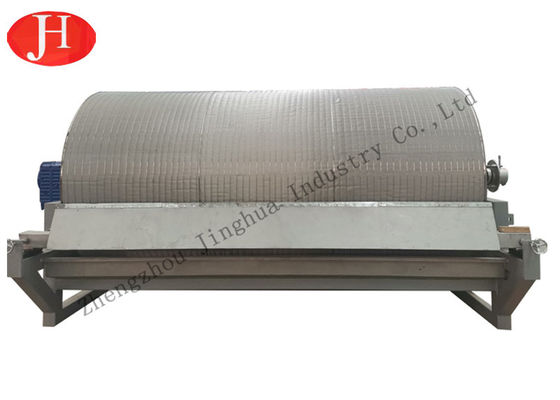

Description of sweet potato starch milk dehydrator machine
Zhengzhou Jinghua Industry vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Main technical parameters
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |
Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
The Key Technology And Equipment Of Potato Raw Whole Powder Processing and Study On Anti-browning Technology And Equipment Of Potato Flour Of Zhengzhou jinghua Industrial Co., LTD Have Obtained The Scientific And Technological Achievement Evaluation Certificate Issued By The Chinese Cereals And Oils Association.
