Vacuum Filter Tapioca Starch Production Line For Food Industry

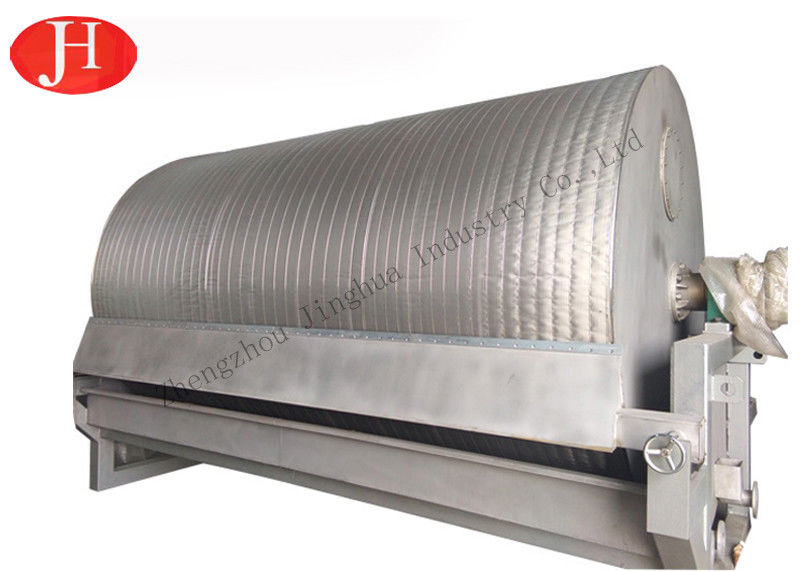

 Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Main technical parameters



Model	KLG12	KLG20	KLG24	KLG34
Vacuum degree(Mpa)	0.04~0.07	0.04~0.07	0.04~0.07	0.04~0.07
Content of solid(%)	≥60	≥60	≥60	≥60
Feeding density(Be°)	16-17	16-17	16-17	16-17
Capacity(t/h)	4	6	8	10
Power	3	4	4	4
Drum rotary speed(r/min)	0-7.9	0-7.9	0-7.9	0-7.9
Weight(kg)	3000	4000	5200	6000
Dimension(mm)	3425x2312x2213	4775x2312x2213	4785x2630x2600	5060x3150x3010



Advantages of vacuum filter



1. Fully stainless steel with no corrosion to the raw material



2. Compact structure and nice design



3. Speed of rotating drum can be adjusted according to actual site.



4. Material uploaded through blade, which is made of high rigid alloy and can be adjusted.



5. Lower energy consumption, smaller area.Than centrifuge.






There are four steps to making potato starch

1.Cleaning:To remove the stone sand and from the raw material ,and peel it.

2.Crushing :To destroys the fiber structure and makes the starch particles free.

3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all

kinds of starch and modified starch emulsion.

4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.



Pre-sale service

1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and Providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to service machinery overseas.
6.Provide English Version of Installation/Operation/Service/Maintenance Manual.

FAQ


Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4:Are your products can be assured ?
A:Our machines are all have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
