Automatic Cassava Starch Processing Equipment Electric Cassava Starch Centrifuge Sieve
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | disc separator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1530*1400*765 mm |
| Delivery Time: | 10 |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Disc Separator | Application: | Canna Starch Separator Machine |
|---|---|---|---|
| Quality: | Top Level | Energy: | Electric |
| Advantage: | Large Capacity | Package: | Wooden Case |
| Operation: | Automatic | ||
| Highlight: | Automatic Cassava Starch Processing Equipment,Electric Cassava Starch Processing Equipment,Electric Cassava Starch Centrifuge Sieve |
||
Product Description

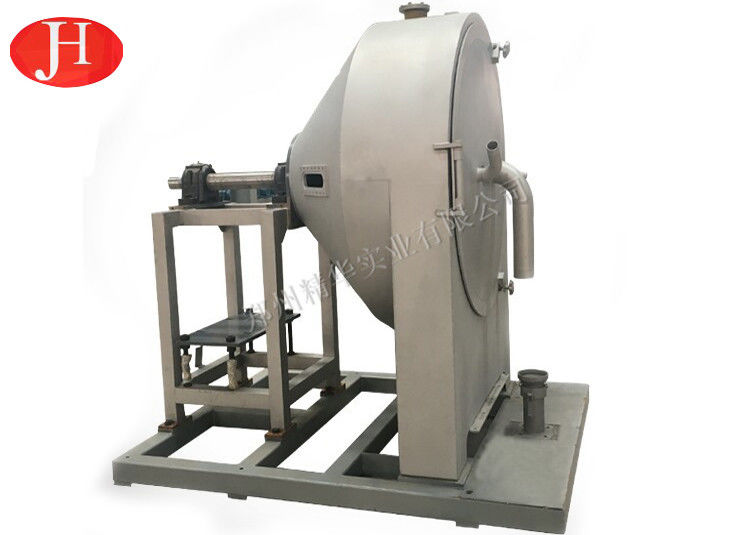

Cassava Starch Processing Equipment With Electric Cassava Starch Centrifuge Sieve
Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato,
wheat, rice, sago and other grain starch extraction.
Advantages of centrifuge sieve
1. Combining the latest technology and years’ experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.
7. Widely used for starch extraction in starch processing factory.
Main technical parameters
|
Model |
Basket diameter(mm) |
Main shaft speed(r/min) |
Working model |
Power (Kw) |
Dimension (mm) |
Weight (t) |
|
DLS85 |
850 |
1050 |
continuous |
18.5/22/30 |
1200x2111x1763 |
1.5 |
|
DLS100 |
1000 |
1050 |
continuous |
22/30/37 |
1440x2260x1983 |
1.8 |
|
DLS120 |
1200 |
960 |
continuous |
30/37/45 |
1640x2490x2222 |
2.2 |
The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry
goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the
sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder
collection chamber.
Q1:Is your company a factory or trading company?
A:Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A:Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3.Can you customize the products according to our requirements?
A:Yes, we have a professional technical department that can customize the products according to your requirements
Q4:Are your products can be assured ?
A:Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
