Tapioca Packaging Cassava Starch Processing Equipment Multifunction Flour Grinder
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Packaging Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3100*800*650 mm |
| Delivery Time: | 10 |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Cassava Starch Processing Equipment | Line: | Cassava Flour Production Line |
|---|---|---|---|
| Application: | Cassava Flour Packaging Machine | Operation: | Automatic |
| Advantage: | Easy Operation | Function: | Multifunction Flour Grinder |
| Production Capacity: | 120kg/h | Price: | Negotiable |
| Highlight: | Tapioca Cassava Starch Processing Equipment,Multifunction Flour Grinder,120kg/h Cassava Starch Processing Equipment |
||
Product Description

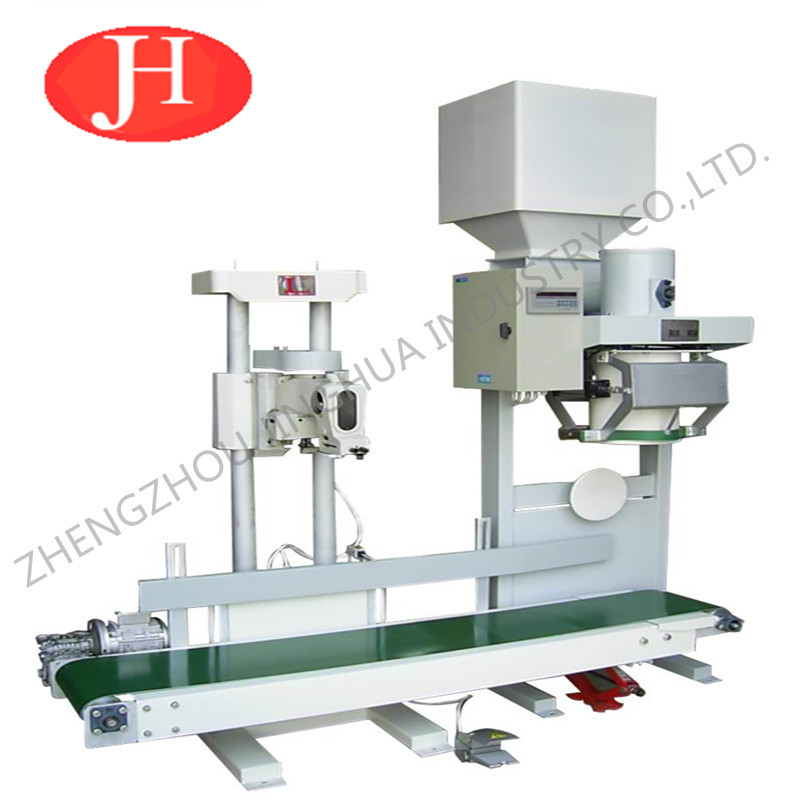

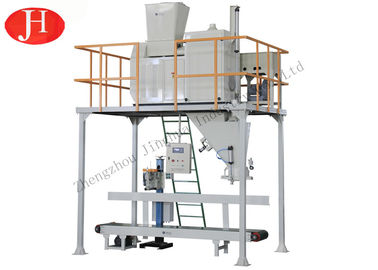

The parts contact with materials are made of stainless steel.Automatic starch package machine packing range is 5-50 kg .
The main quantitative packing in the powdery material containing gas mixture material (such as waxy rice noodles, corn starch, potato starch, cassava starch, modified starch, gluten flour, dextrin).Easy to operate and maintenance.
Main technical parameters
|
Specification |
JHTB-5 |
JHTB-25 |
JHTB-50 |
|
Weighing ranges(Kg) |
5~10 |
20~25 |
20~50 |
|
Yield(packets/hour) |
150~600 |
150~500 |
300~400 |
|
Dividing the value(g) |
5 |
10 |
10 |
|
Power(Kw) |
4 |
4 |
4 |
|
Package size(mm) |
1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
|
Total weight(kg) |
550 |
550 |
550 |
The working principle of automatic packing machine
The sensor of the packaging machine is subjected to the action of pressure to produce a micro - variable signal, which is processed by the
computer.
When the computer is activated by the external work signal, the feeder is controlled to feed the material quickly into the packaging bag. When the fast feeding ration is reached, the fast feeding is stopped, and the cylinder of the vibrating bag vibrates the packing material, and then the optimal feeding department is entered.
When the set ration of slow feeding is reached (ration _ drop), stop the slow feeding and loosen the bag holder, etc. Such a cycle of work to achieve automatic quantitative packaging. Press the stop switch if you need to stop working.
pre-sale service
1. Accept customer consultation and customize products according to customer requirements.
2. Provide customers with product technology, equipment parameters and process flows, and train personnel according to customer
requirements.
Sales service
1. The company sends technical personnel to the site to guide equipment installation, debugging and train operators.
2. If you have any questions during the installation process, please contact the person in charge in time. We will solve the problem in time and ensure the installation progress.
After-sales service
1. Provide phone and video support. If customers have any problems or equipment abnormalities during use, they can contact us by phone. We will help customers solve their problems by phone or video.
2. If the phone or video cannot be connected, the company will send technicians to the site to repair the problem.
3. For products purchased from our company, we provide one-year warranty and lifetime maintenance services.
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing,engineering installation and debugging, technical personnel training and other work.
Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas.
Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.
The chairman of the board is professor wangyanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research andengineering design of starch and its deep processing direction, and research and evelopment of modern equipment.
He has published 7 scientific works, 6 national standards and 30 academic papers.
Q1:Is your company a factory or trading company?
A:Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A:Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3.Can you customize the products according to our requirements?
A:Yes, we have a professional technical department that can customize the products according to your requirements
Q4:Are your products can be assured ?
A:Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
