Continuous Cassava Starch Processing Equipment Wheat Flour Airflow Dryer
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Airflow Dryer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6000*5000*8000 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Cassava Starch Processing Equipment | Line: | Wheat Starch Production Line |
|---|---|---|---|
| Energy: | Electric | Customized: | Customized |
| Application: | Wheat Flour Drying Machine | Quality: | Top Level |
| Price: | Negotiable | Function: | Multifunction Flour Grinder |
| Highlight: | Continuous Cassava Starch Processing Equipment,Multifunction Wheat Flour Airflow Dryer,Airflow Drying Cassava Starch Equipment |
||
Product Description

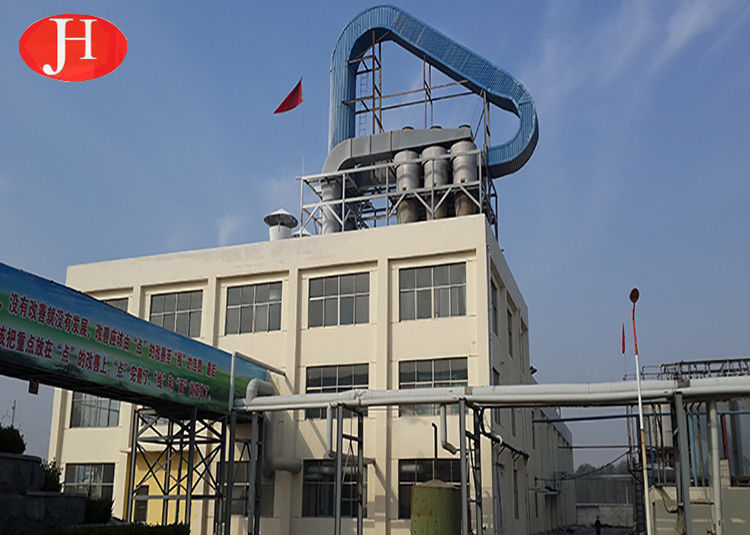

Continuous Working Cassava Starch Processing Equipment Airflow Dryer
When designed air flow drying system, we fully considered each factor of turbulent flow,cyclone separating and heat exchange etc., so that each
collocation and parameter have definite theory basis, such as heat exchange's collocation , temperature control of inlet air and outlet air,diameter
change of cyclone pipe etc. Through measuring on feeding material moisture,or temperature difference between inlet and outlet, the feeding
quantity and inlet steam volume can be automatic adjusted, thus the water content of product could of product could reach the technology
requirement.This kind airflow dryer is not only suitable to all kinds potato kinds starch to be dried,but also adaptable to the drying of corn starch
and wheat starch.
Main technical parameters
Model | DG-3.2 | DG-4.0 | DG-6.0 | DG-10.0 |
Output(t/h) | 3.2 | 4.0 | 6.0 | 10.0 |
Power capacity(Kw) | 97 | 139 | 166 | 269 |
Moisture of wet starch(%) | ≤40 | ≤40 | ≤40 | ≤40 |
Moisture of dry starch(%) | 12-14 | 12-14 | 12-14 | 12-14 |
Advantages of airflow dryer
1. Fully considered each factor of turbulent flow, cyclone separating and heat exchange.
2. Parts contact with starch is made of stainless steel 304.
3. Energy saving, moisture of product stable.
4. The moisture of starch is very stable, and varied 12.5%-13.5% by automatic control which can control the moisture of starch by controlling
feeding quantity of steam and wet starch.
5. Less starch loss from wind exhausted.
6. The complete solved plan for a whole flash dryer system .
The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material
enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high
speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is
exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind
winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust
gas duct, into the atmosphere.
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong
strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the
working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds
starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services
overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor
certificate more than 20.
Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How loong is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4:Are your products can be assured ?
A:Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
