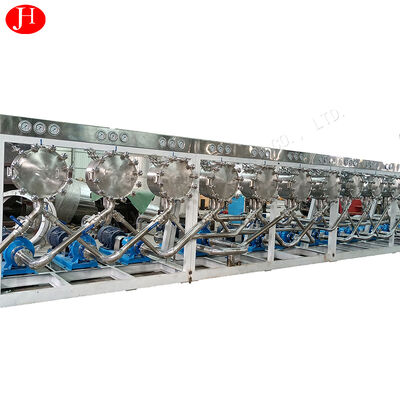

Cassava Starch Stainless Steel Desander Hydrocyclone Wheat Starch Milk Dehydrator
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Hydrocyclone |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 5500*1500*3500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Cassava Starch Processing Equipment | Application: | Wheat Starch Milk Dehydrator Machine |
|---|---|---|---|
| Line: | Wheat Starch Production Line | Energy: | Electric |
| Advantage: | High Effective | Operation: | Automatic |
| Automatic: | Stainless Steel | Function: | Multifunction Flour Grinder |
| Highlight: | Stainless Steel Desander Hydrocyclone,Cassava Starch Desander Hydrocyclone,Wheat Starch Milk Dehydrator |
||
Product Description

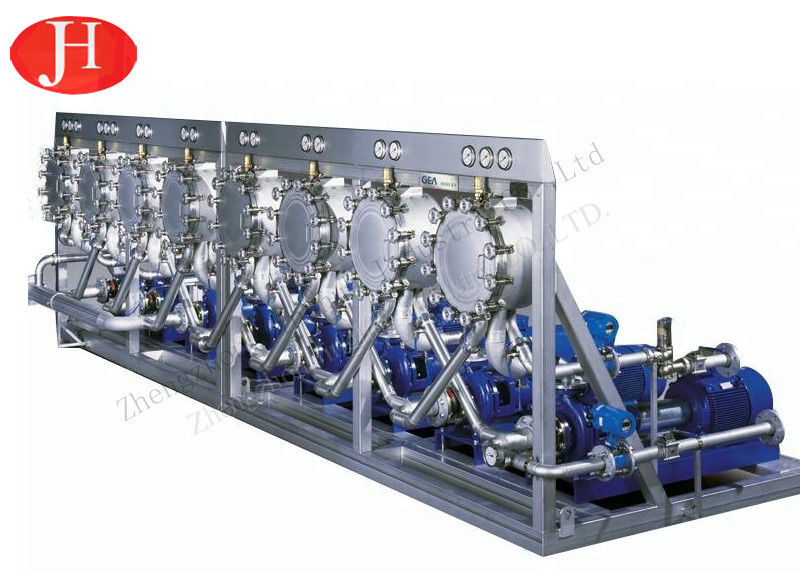

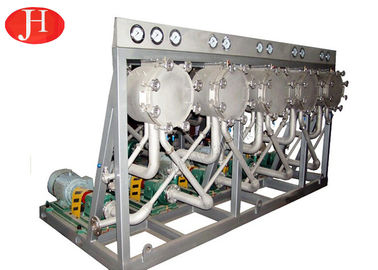

Cassava Starch Processing Stainless Steel Hydrocyclone Equipment
Zhengzhou jinghua Starch hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein
separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.
With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley
(m) starch, andmodifiedstarch.
Main technical parameters
|
Model |
XL325 |
XL438 |
XL516 |
XLS426 |
|
|
Plate quantity |
1 |
1 |
1 |
2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
|
Cylinder diameter(mm) |
362 |
438 |
516 |
426 |
|
|
Cylinder norm(mm) |
10,15 |
10,15 |
10,15 |
10,15 |
|
|
Feed Pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Inlet Size(mm) |
76 |
89 |
89 |
2* 89 |
|
|
Underflow Size(mm) |
48 |
48 |
57 |
76 |
|
|
Top flow Size(mm) |
57 |
57 |
76 |
2- 57 |
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the
inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material
components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is
small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of
the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang
yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua
company over the years, the production technology of products and the production process of starch. The delegation visited the company's office
building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong
strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the
working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds
starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services
overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor
certificate more than 20.
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the
installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help
the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4:Are your products can be assured ?
A:Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
