Belt Vacuum Filter Grain Grinder Protein Drying Cassava Starch Production Line
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | vacuum filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 5060*3150*3010 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Cassava Starch Making Machine | Application: | Food Flour Grinding Mill Machine |
|---|---|---|---|
| Function: | Multifunction | Feature: | High Efficiency Grain Grinder |
| Processing Type: | Cleaning-milling-packing | Advantage: | High Effective |
| Type: | Food Processing Machine | Material: | Stainless Steel |
| Highlight: | Drying Corn Belt Vacuum Filter,Starch Vacuum Filter,Protein Drying Corn Starch Production Line |
||
Product Description

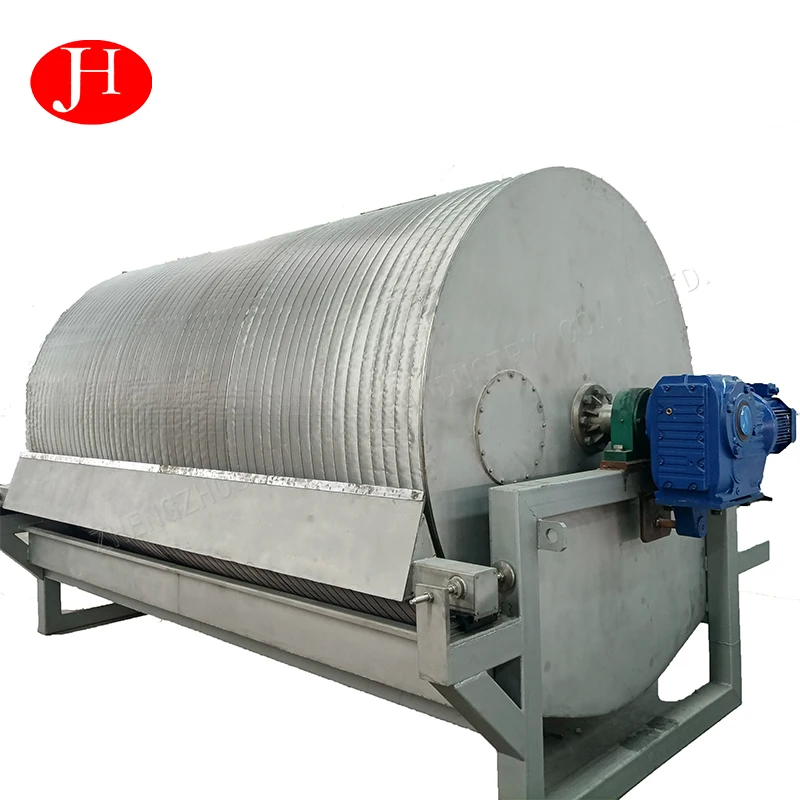

Zhengzhou Jinghua Industry vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk
dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Main technical parameters
|
Model |
KLG12 |
KLG20 |
KLG24 |
KLG34 |
|
Vacuum degree(Mpa) |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
|
Content of solid(%) |
≥60 |
≥60 |
≥60 |
≥60 |
|
Feeding density(Be°) |
16-17 |
16-17 |
16-17 |
16-17 |
|
Capacity(t/h) |
4 |
6 |
8 |
10 |
|
Power |
3 |
4 |
4 |
4 |
|
Drum rotary speed(r/min) |
0-7.9 |
0-7.9 |
0-7.9 |
0-7.9 |
|
Weight(kg) |
3000 |
4000 |
5200 |
6000 |
|
Dimension(mm) |
3425x2312x2213 |
4775x2312x2213 |
4785x2630x2600 |
5060x3150x3010 |
Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed
regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference,
material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to
starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Pre-sale service
1. Accept customer consultation and customize products according to customer requirements.
2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1. The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong
strength of Henan University of Technology, Jinghuacombines scientific research, industry and trade as a whole, which mainly engaged in the
working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds
starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services
overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor
certificate more than 20.
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2: How long is the warranty period of the equipment?
A: After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3: What kind of after-sales service do you provide?
A: Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
