Agriculture Cassava Starch Making Machine Vacuum Filter Equipment 0.07 Mpa
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | vacuum filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 5060*3150*3010 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Cassava Starch Processing Equipment | Application: | Cassava Grinder Equipment |
|---|---|---|---|
| Function: | Multifunction Flour Grinder | Feature: | High Efficiency Grain Grinder |
| Processing: | Easy Operation | Type: | Agriculture Products Machine |
| Final Products: | Super Fine Flour | Material: | Stainless Steel |
| Highlight: | Cassava Starch Making Machine Vacuum Filter,0.07 Mpa Cassava Starch Processing Machine,Agriculture Cassava Starch Processing Machine |
||
Product Description

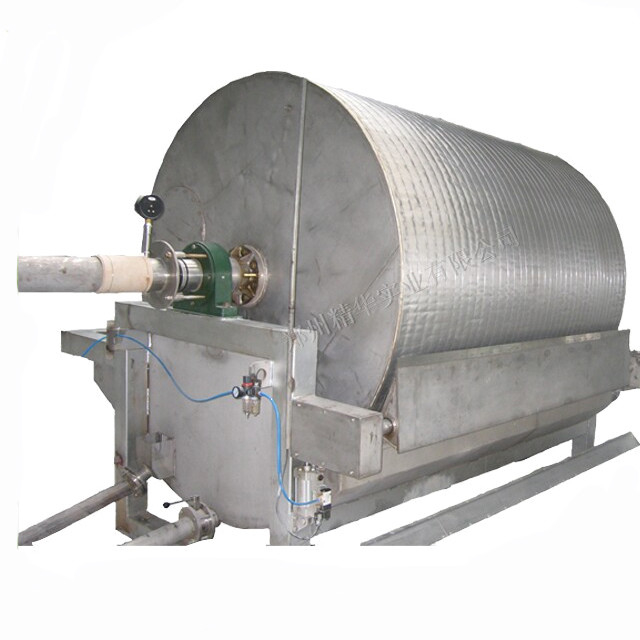

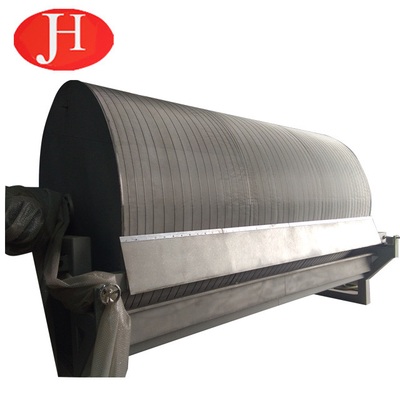

New Condition Cassava Starch Making Machine Vacuum Filter Equipment
Zhengzhou Jinghua Industry vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk
dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Main technical parameters
|
Model |
KLG12 |
KLG20 |
KLG24 |
KLG34 |
|
Vacuum degree(Mpa) |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
|
Content of solid(%) |
≥60 |
≥60 |
≥60 |
≥60 |
|
Feeding density(Be°) |
16-17 |
16-17 |
16-17 |
16-17 |
|
Capacity(t/h) |
4 |
6 |
8 |
10 |
|
Power |
3 |
4 |
4 |
4 |
|
Drum rotary speed(r/min) |
0-7.9 |
0-7.9 |
0-7.9 |
0-7.9 |
|
Weight(kg) |
3000 |
4000 |
5200 |
6000 |
|
Dimension(mm) |
3425x2312x2213 |
4775x2312x2213 |
4785x2630x2600 |
5060x3150x3010 |
Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed
regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference,
material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to
starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Advantages of vacuum filter
1. Combining the latest technologoy and years experience into a whole.
2. Fully stainless steel for parts contacting with material,compact structure and nice design
3. Speed of rotating dum can be adjusted according to actual site.
4. Material umloaded through blade, which is made of high rigid aly and can be adjusted.
5. Stimer's rumning frequency can be adjusted.
6. Continuous adjusting for fhuid-level control.
7. Low energy consumption,small areafindly operation and stable running.
8. Widely used for dewatering of suspension in starch processing.
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2: How long is the warranty period of the equipment?
A: After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3: What kind of after-sales service do you provide?
A: Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
