Large Capacity Sweet Potato Rasper Machine Starch Production Line
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | rasper |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3000*1490*1500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Sweet Potato Starch Machine | Application: | Food Flour Grinding Mill Machine |
|---|---|---|---|
| Function: | Multifunction Flour Grinder | Final Products: | Super Fine Flour |
| Type: | Food Processing Machine | Material: | Stainless Steel |
| Usage: | Powder Milling | Processing: | Cleaning-degerminating-milling-packing |
| Highlight: | Sweet Potato Rasper Machine,Large Capacity Sweet Potato Rasper Machine,Starch Potato Rasper Production Line |
||
Product Description

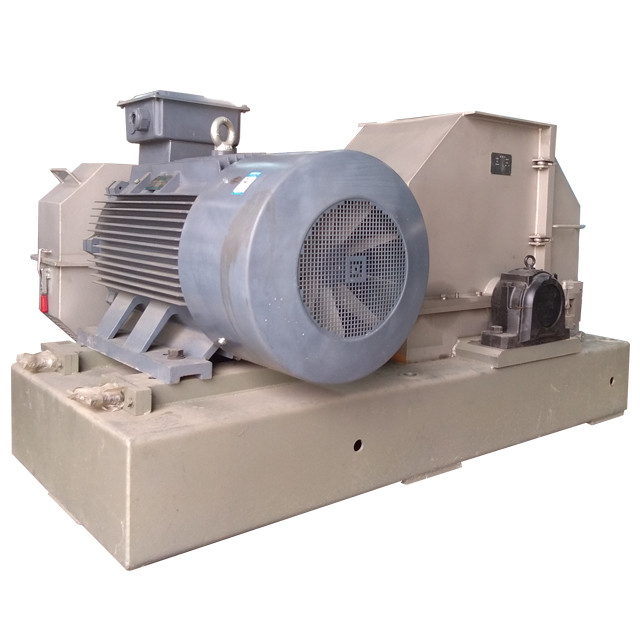

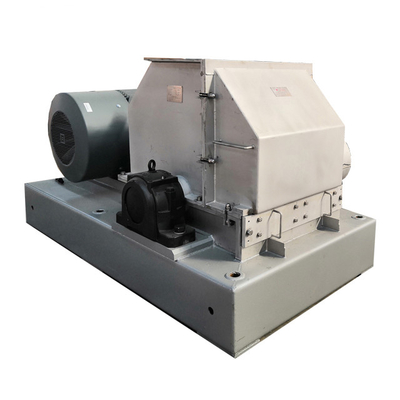

Large Capacity Sweet Potato Rasper Machine Potato Starch Production Line
sweet potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal organization is not
easy to destroy, the use of repeated file grinding, fully destroy the potato block structure, can make the small starch particles can be successfully
free from the root, improve the extraction rate of starch.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.
Main technical parameters
|
Model |
DCM8435 |
DCM8450 |
DCM8465 |
DCM1070 |
|
Main shaft rotating speed(r/min) |
2100 |
2100 |
2100 |
1470 |
|
Drum diameter(mm) |
Φ840 |
Φ840 |
Φ840 |
Φ1100 |
|
Drum width(mm) |
350 |
500 |
650 |
700 |
|
Power(Kw) |
110 |
160 |
200 |
250 |
|
Capacity(t/h) |
20-23 |
30-33 |
35-40 |
40-45 |
|
Dimension(mm) |
2170x1260x1220 |
2170x1385x1250 |
2170x1650x1380 |
3000x1590x1500 |
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2. What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3: Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
