Customized Potato Starch Grading Disc Separator Making Machine Electric
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Disc Separator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3950*2050*3050 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Disc Separator Making Machine | Application: | Food Industry Machinery |
|---|---|---|---|
| Type: | Food Processing Machine | Processing Type: | Cleaning-milling-packing |
| Function: | Multifunction | Material: | Stainless Steel |
| Advantage: | High Effective | Main Product: | Roller Mill Machine |
| Highlight: | Potato Starch Grading Disc Separator,Starch Grading Disc Separator Machine,Electric Starch Grading Disc Separator |
||
Product Description

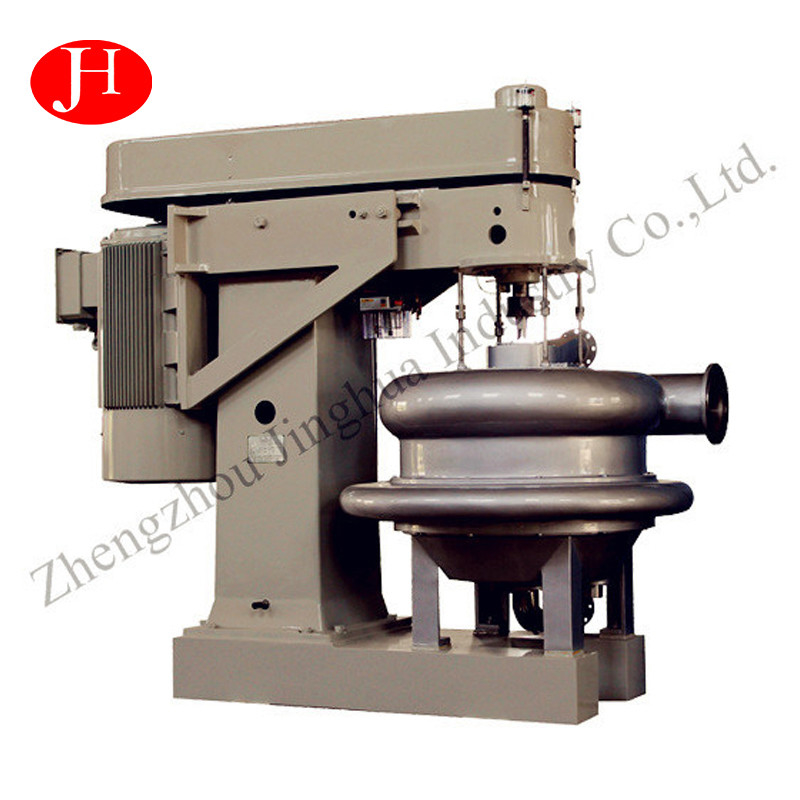

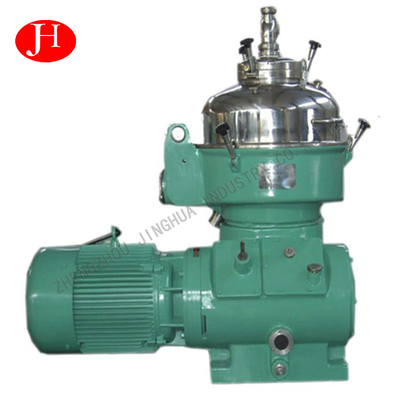

Description of Disc separator
Disc separator is a separator of nozzle continuous discharge . It has better separation effect in separating suspension liquid with less solids and
all kinds of emulsion as having higher separating factor .
The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to
the functions of this machine.
Technical parameters
|
Model |
GK800/GKH800 |
GK1250/GKH1250 |
GK1600/GKH1600 |
|
Bowl diameter(mm) |
800/800 |
1250/1250 |
1600/1600 |
|
Bowl lenght(mm) |
400/450 |
600/600 |
800/1000 |
|
Bowl’s rotating speed(r/min) |
1400/1550 |
1200/1200 |
900/950 |
|
Separating factor |
876/1070 |
1006/1006 |
725/808 |
|
Dimension (mm) |
2480x1650x1300 2030x1960x1350 |
3100 x 2070 x 1775 2870 x 2470 x 1955 |
3885 x 2726 x 2220 4050 x 2745 x 2295 |
|
Weight(Kg) |
3200/5500 |
8800/11150 |
11550/16550 |
|
Power(kw) |
30/45 |
55/90 |
90/132 |
Our Services
Pre-sale service
1. Introduce the features and applications of the products to customers in detail.
2. Choose economical and practical machines for customers.
3. Provide relevant machine operation data.
4. Provide customers with the means of trial operation.
5. Flow chart and factory design plan.
After-sales service
1. Equipment maintenance and operation training.
2. Installation and commissioning of equipment until everything is normal.
3. One year warranty, and provide long-term maintenance services and spare parts.
4. Provide technical support for customers to develop new products.
5. Engineers can be sent overseas to repair machinery.
6. Provide installation/operation/service/maintenance manuals in English.
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2: How long is the warranty period of the equipment?
A: After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3: What kind of after-sales service do you provide?
A: Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on
your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
