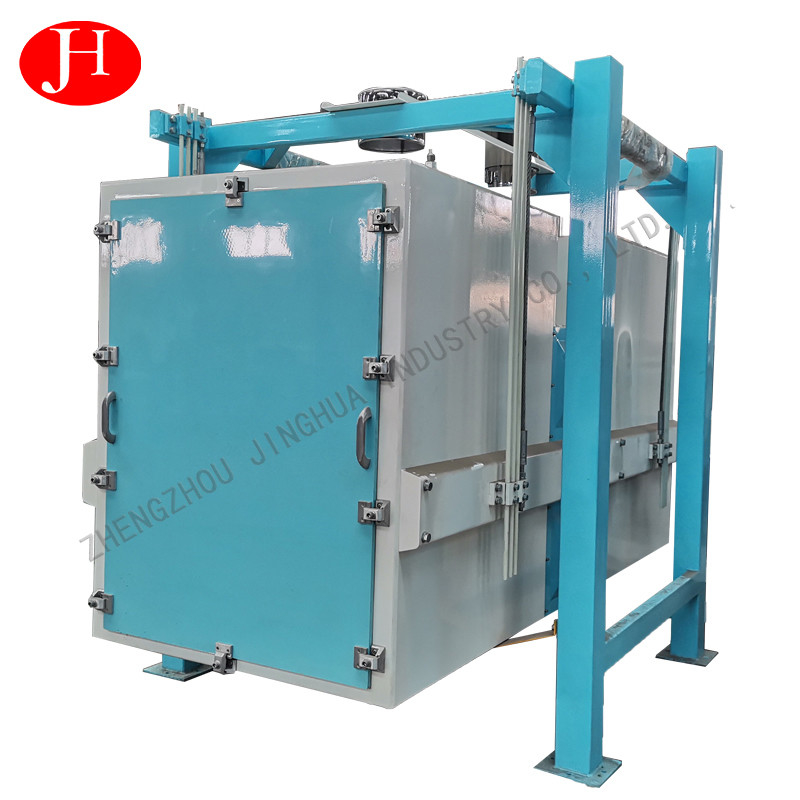

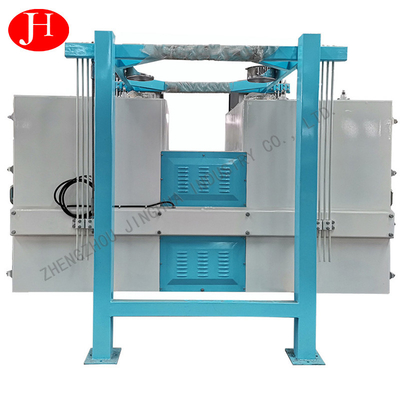

Electric Vibration Sweet Potato Starch Four Bin Starch Sifter Machine Equipment

Description of starch sifter

Zhengzhou Jinghua starch screen is widely used in starch industry, is the best screening equipment for starch screening. The sieve body is

composed of multi-layer sieve, and the sieve shell is made of high quality perch wood. Each layer is closely connected on the rim in the form of

steps to ensure good sealing performance and easy maintenance. The boom is made of glass fiber reinforced plastic and has a long service life.

Widely used in corn starch, tapioca starch, potato starch, sweet potato starch, wheat starch, sago starch and other processing projects before

starch packaging dry starch screening.

Main technical parameters

Advantages of starch sifter

1. Closed mild steel box with greater flow flexibility due to additional external (4) channels.

2. Simple design and easy maintenance.

3. Alum (aluminum) type screen inner frame, mesh cloth bonding frame fast, activator.

4. The outer screen is coated with melamine plastic laminate inside and outside and equipped with stainless steel tray.

5. Plan to use a screen door made of glass fiber, with a bright surface, a smooth surface, and a thermal insulation layer to prevent condensation.

6. Provide discharge outlets, including inlet and outlet socks and black plastic covers.

7. The screening scheme can be easily and quickly changed if necessary.

Working principle

The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting

and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.

The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different

applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged

out.

There are four steps to making starch

1. Cleaning: Remove stone sand and impurities from raw materials.

2. Crushing: Destroy the fiber structure and free the starch particles.

3. Separator: used for sand removal, mud removal, degreasing, micro-slag separation, protein separation, washing and concentration of various

starch and modified starch emulsions in starch pulp.

4. Dry packaging: The wet starch is dehydrated, screened and packaged.

Pre-sale service

1. Accept customer consultation and customize products according to customer requirements.

2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service

1. The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.

2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the

installation progress.

After-sale service

1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help

the customer solve the problems by phone or video.

2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.

3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

Q1: Can you provide detailed parameters and drawings of the equipment?

A: Yes, you can contact us by email, we will provide you with detailed parameters and drawings of the equipment.

Q2: How long is the warranty period of the equipment?

Answer: After the equipment is successfully installed and debugged, there is a one-year warranty period.

Q3: What kind of after-sales service do you provide?

A: Provide after-sales service to customers through telephone, video guidance, on-site maintenance, etc.

Q4: Can your products be assured?

A: Our machines all pass ISO9001:2001 and have CE certificates from SGS, TUV.

Q5: If we show you our factory layout, can you help us design the whole production line?

A: Yes, our experienced engineers and technicians can help you arrange the layout and installation of the whole process line according to your

actual situation;

Q6: If we have samples of new products, can you help us to analyze and design the machine?

A: Yes, our technical department can help you analyze, design and test the new products you offer.
