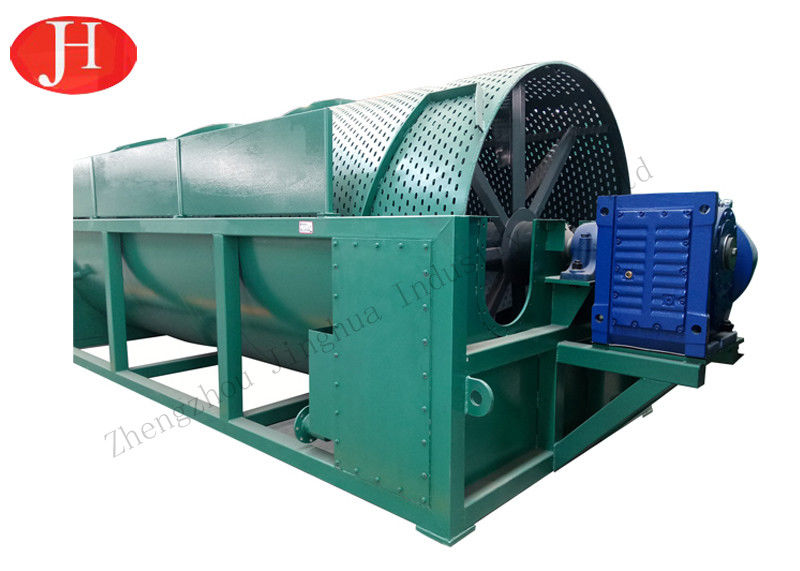

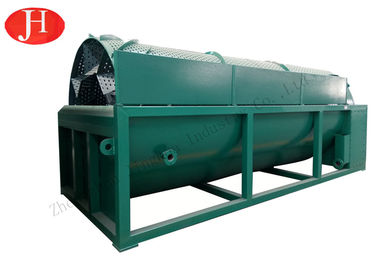

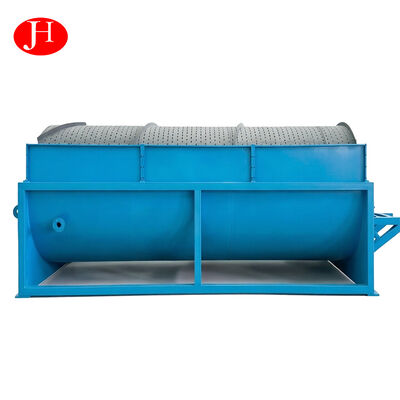

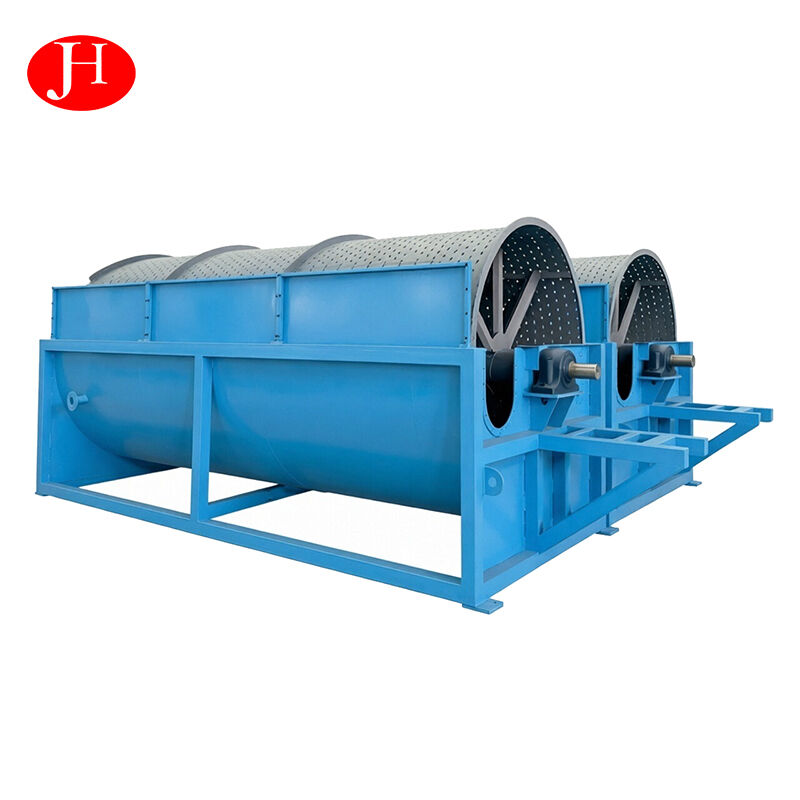

Stainless Steel Cassava Starch Production Line Rotary Washing Machine
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Rotary Washing Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 6110*2340*2170 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Rotary Washing Machine | Line: | Cassava Starch Production Line |
|---|---|---|---|
| Type: | Food Processing Machine | Application: | Food Industry Machinery |
| Material: | Stainless Steel | Function: | Multifunction |
| Highlight: | stainless steel cassava starch production line,rotary washing cassava starch production line,stainless steel cassava flour processing machine |
||
Product Description
Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity (t/h) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
|
DQXJ190x450 |
Φ1905 |
4520 |
20-25 |
18.5 |
5400x2290x2170 |
5200 |
|
DQXJ190x490 |
Φ1905 |
4920 |
30-35 |
22 |
5930x2290x2170 |
5730 |
|
DQXJ190x490 |
Φ1905 |
4955 |
35-50 |
30 |
6110x2340x2170 |
6000 |
Advantages of rotary cleaning machines
1. Integrate the latest technology with years of experience
2. Adopt countercurrent washing method, which has good washing effect and removes mud and sand.
3. Reasonable feeding structure. The raw material damage rate is less than 1%, ensuring a high starch extraction rate.
Work principles
This washing machine adopts a counter-current washing design, that is, the washing water enters the washing machine from the discharge port.

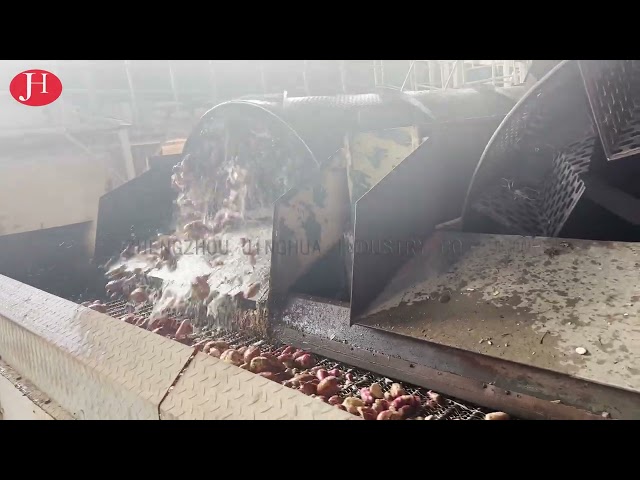

Materials enter the rotating drum and are cleaned during tumbling and collision.
At the same time, the skin of the material is effectively removed.
The cleaned sediment falls through the screen between the drum and the inner wall of the tank, moves forward under the impetus of the blades,and is discharged through the overflow tank.
our service
pre-sale service
1. Introduce the detailed features and applications of the product to customers.
2. Choose economical and practical machines for customers.
3. Provide operating data of relevant machines.
4. Provide customers with audition means.
5. Flow chart and factory design layout.
Sales service
1. Recommend the engineering conditions required for machine installation.
2. Communicate the manufacturing progress of the machine with customers in a timely manner.
3. Project planning and design services.
After-sales service
1. Equipment maintenance and hands-on operation training.
2. Install and debug the equipment until everything is normal.
3. One-year warranty and long-term maintenance services and spare parts provided.
4. Provide technical support for customers to develop new products.
5. Engineers who can provide services for machinery overseas.
FAQ
Q1: Is your company a factory or trading company?
A1: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A2: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.
Q3:Where is your factory located? How can I visit there?
A3: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A4: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A5: Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation.
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
