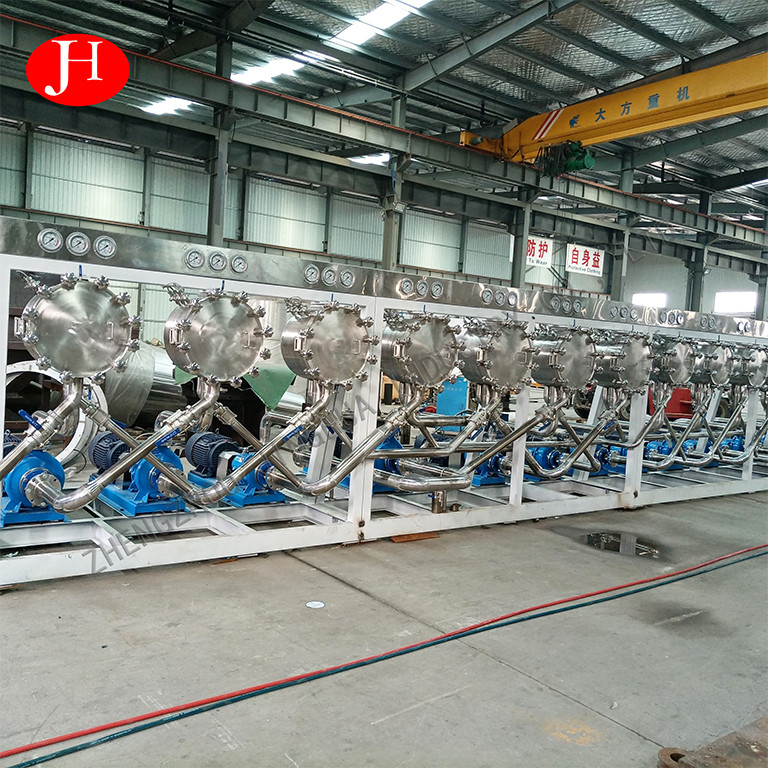

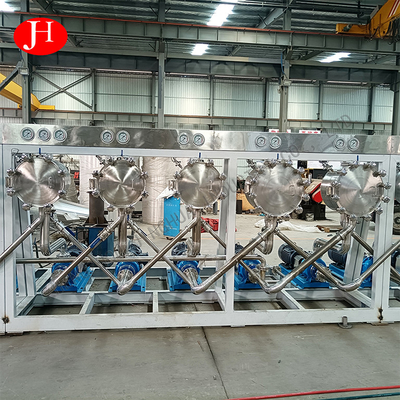

Sweet Potato Starch Making Machine Hydrocyclone Equipment
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Hydrocyclone |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 5500*1000*2500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Hydrocyclone | Line: | Sweet Potato Starch Production Line |
|---|---|---|---|
| Useful Life: | 20 Years | Customized: | Pressage Chaud |
| Application: | Food Industry Machinery | Advantage: | High Effective |
| Operation: | Automatic | Function: | Multifunction |
| Highlight: | sweet potato starch making machine,hydrocyclone potato starch making machine,hydrocyclone potato starch processing machine |
||
Product Description
Zhengzhou Jinghua starch cyclone is used for degreasing, fine residue separation, protein separation, washing and concentration of various
starches and modified starch emulsions.
Main technical parameters
|
Model |
XL325 |
XL438 |
XL516 |
XLS426 |
|
|
Plate quantity |
1 |
1 |
1 |
2 |
Group capacity: 3-12t/h
7.5-45kw/stage
Total weight: 0.3t/stage |
|
Cylinder diameter(mm) |
362 |
438 |
516 |
426 |
|
|
Cylinder norm(mm) |
10,15 |
10,15 |
10,15 |
10,15 |
|
|
Feed Pressure(MPa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Inlet Size(mm) |
76 |
89 |
89 |
2* 89 |
|
|
Underflow Size(mm) |
48 |
48 |
57 |
76 |
|
|
Top flow Size(mm) |
57 |
57 |
76 |
2- 57 |
Advantages of cyclone separators
1. Made of all stainless steel to ensure no corrosion.
2. Advanced surface treatment technology. Oil and stain resistant.
3. Widely used in starch extraction in starch processing plants.
4. The cyclone group integrates the functions of concentration, recovery, washing and separation.
5. The cyclone tube is made of reinforced nylon material, which has high strength, wear resistance and good separation effect.
6. According to the characteristics of different materials, the hydrocyclone design is adopted to better separate the starch.
7. The cyclone group pipeline has been optimized and designed by computer. Compact and elegant.
8. Special sealing design, friendly to operate.
Work principles
The starch milk enters the middle cavity of the cylinder from the cyclone feed port through the starch pump.
The starch paste enters the inlet of the cyclone tube and enters the inside of the cyclone tube along the tangential direction of the cyclone tube. In the cyclone tube, the material components rotate in a spiral and generate centrifugal force.
The relatively small density of protein and water has a small centrifugal force, so it performs spiral motion and is reduced to the resistance of the lower part of the cone.
The spiral vortex formed by the bottom flow port flows upwards and is discharged to the flow port, thereby achieving the purpose of each item. Purpose.
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
Q1: Is your company a factory or trading company?
A1: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A2: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.
Q3:Where is your factory located? How can I visit there?
A3: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A4: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A5: Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation.
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
