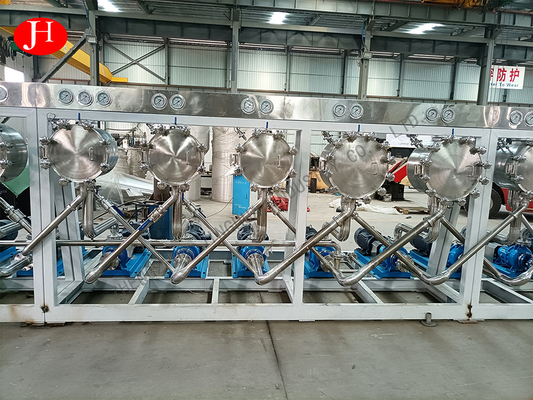

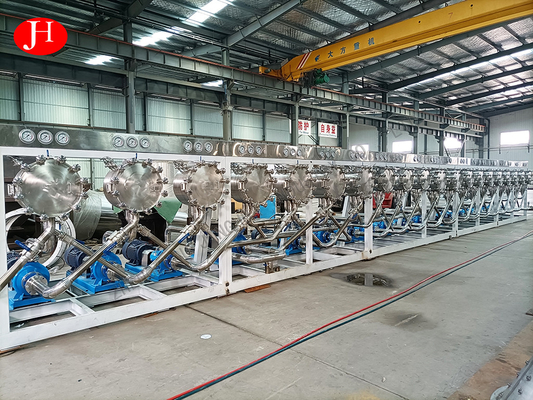

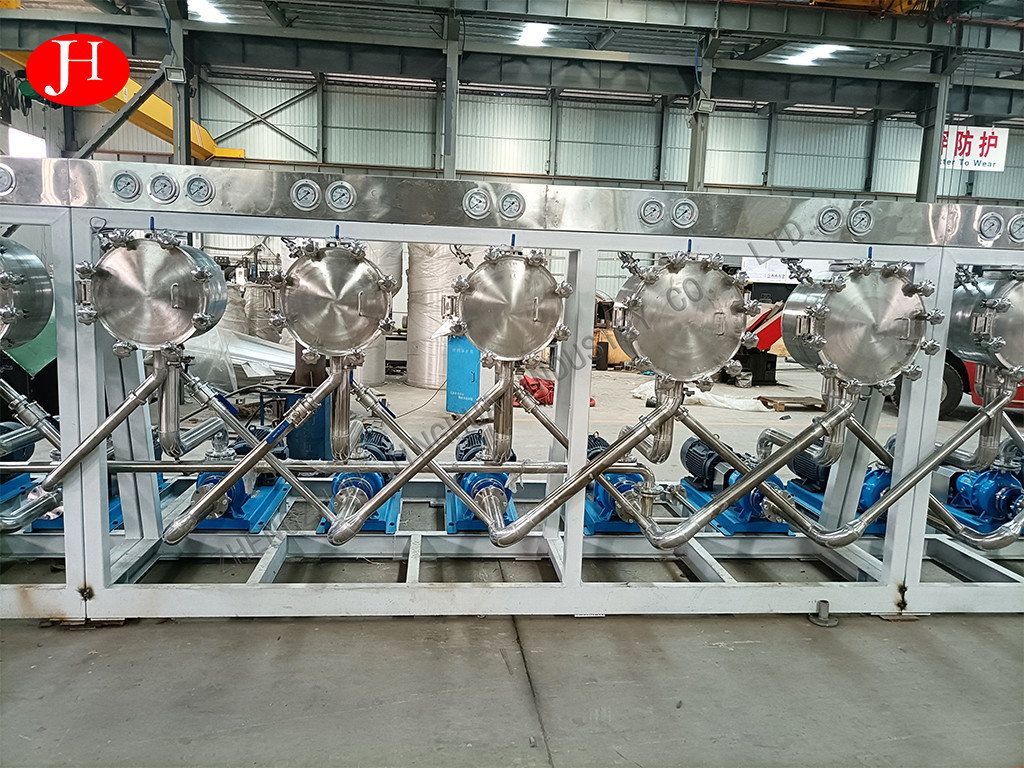

Compact Hydrocyclone Machine For Starch Processing

Zhengzhou jinghua starch hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley (m) starch,andmodifiedstarch.



Main technical parameters



Model	XL325	XL438	XL516	XLS426
Plate quantity	1	1	1	2	Group capacity: 3-12t/h Power: 7.5-45kw/stage   Total weight: 0.3t/stage
Cylinder diameter(mm)	362	438	516	426
Cylinder norm(mm)	10,15	10,15	10,15	10,15
Feed Pressure(MPa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Inlet Size(mm)	76	89	89	2* 89
Underflow Size(mm)	48	48	57	76
Top flow Size(mm)	57	57	76	2- 57



Advantages of hydrocyclone



1. Fully stainless steel to be sure there is no corrosion.



2. Advanced surface treatment craft. Oil and dirty resisting.



3. Widely used for starch extraction in starch processing plants.



4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.



5. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.



Working principle



The starch milk enters the middle cavity of the cylinder from the cyclone feed port through the starch pump.

The starch paste enters the inlet of the cyclone tube and enters the inside of the cyclone tube along the tangential direction of the cyclone tube.
In the cyclone tube, the material components rotate in a spiral and generate centrifugal force.

The relatively small density of protein and water have small centrifugal force, and they perform spiral motion and are reduced to the resistance of the lower part of the cone.

A counter-rotating spiral vortex is formed from the bottom outlet and is discharged upward toward the outlet, thereby achieving each item. the goal of.



There are four steps to making starch



1. Cleaning:To remove the stone sand and from the raw material

2. Crushing :To destroys the fiber structure and makes the starch particles free.

3. Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.

4. Drying and Packing:To dehydrator the wet starch, sifter and packaged.





pre-sale service

1. Accept customer consultation and customize products according to customer requirements.

2. Provide customers with product technology, equipment parameters and process flows, and train personnel according to customer
requirements.

Sales service

1. The company sends technical personnel to the site to guide equipment installation, debugging and train operators.

2. If you have any questions during the installation process, please contact the person in charge in time. We will solve the problem in time and ensure the installation progress.

After-sales service

1. Provide phone and video support. If customers have any problems or equipment abnormalities during use, they can contact us by phone. We will help customers solve their problems by phone or video.

2. If the phone or video cannot be connected, the company will send technicians to the site to repair the problem.

3. For products purchased from our company, we provide one-year warranty and lifetime maintenance services.
